Xtreme @Sky crypt help needed.



I have 110cm dish with SG2100 Diseqc motor, Xtreme@SkyCrypt receiver, CasInterface2 (CasInterfaceStudio3.3.3), Infinity USB Phoenix, MatrixReloaded CAM, Titanium/Fun6 cards.

I would like to bring Xtreme in dream mode and try to reprogram SkyCrypt CAS (just for fun) in MR, penta, IceCryptBlue but every time it fails.

At the motherboard of Xtreme I mounted a 20pin connector, and made a cable with slow Down Circuit like example at the site of Duolabs (http://www.cellularcenter.it/cas/xtremecas2.pdf).

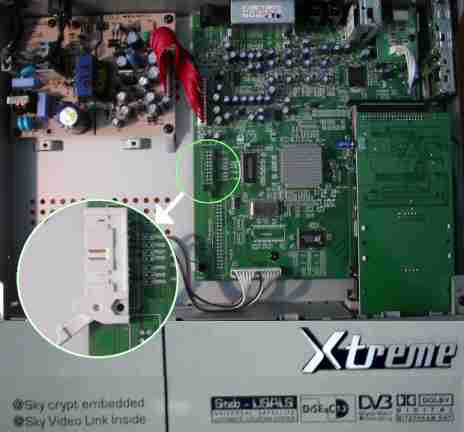

Note that my motherboard differs from the one shown in the picture at above site; mine also had just the solder points but not an actual connector, hence I mounted one myself. At the insert of the picture below this connector is already there:



I’ve put loaddrv.exe en giveio.sys into Windows\system32\drivers directory. In the root of C:\ I created directory c:\Naxjp-079 with naxjp.exe, byteblaster.txt, xilinxfile, dreamload.bin and MR*.bin files. Then I selected an FTA-channel and switched off the power from Xtreme. After that I plugged self made CasInterface2 cable with SlowDownCircuit into the mounted connecter at motherboard of the Xtreme and other side into CasInterface2. CasInterface2 powered /connected with USBcable to PC. Now I’m ready to bring Xtreme into Dreamload mode. With a loaddrv.exe I’ve installed and started the giveio.sys driver (c:\windows\system32\drivers\).

In the load program appeared : "operation was successful". Then I turned on the power of the Xtreme still tuned to the FTA channel and started CasInterface2 Studio 3.3.3 (after a couple of seconds I see that CAS is connected and a menu with four choices MR, Joker, Dream box, Phoenix). Now I start a DOSbox and change directory to C:\naxjp-079. At the command prompt I type :

naxjp -getid ARM7TDMI -auto xilinx.jed -port byteblaster.txt

The following feedback is given:

NAXJP Ver 0.7.9 beta for Windows 95/98/2000/XP ©Copyright 2003 Nahitafu

Device Chain 0. Command 'getid'. Device 'ARM7TDMI'. File 'ARM7TDMI'

Device Chain 1. Command 'auto'. Device 'XC9572XL-10-VQ44'. File 'xilinx.jed'

Device errorevice 1 TDO value is not equal, expected:01, actual:03

Device errorevice 2 TDO value is not equal, expected:01, actual:E3

Device error:JTAG device is not connected correctly. Please check cable connection and power supply.

Note:Terminating procedure by occuring errors... (bypass-first)

Sorry, ISPEXIT routine has not completed yet.

Device errorevice 1 TDO value is not equal, expected:01, actual:03

Device errorevice 2 TDO value is not equal, expected:01, actual:E3

Device error:JTAG device is not connected correctly. Please check cable connection and power supply.

Note:Terminating procedure by occuring errors... (bypass-first)

Looks like naxjp can’t connect to Xtreme.

I’ve checked: giveio.sys driver is running; cable connected according the schema of Duolabs for Xtreme, CasInterface2 connected ( it’s not really clear for me which choice to make at the CAS2menu (MR-Dreambox???) After selection of Dreambox/connect I get a message – not right connected…but Dreambox is not Xtreme – also different cable connection schema..). Please help me to bring Xtreme in Dreamload mode for reprogramming SkyCrypt CAS Interface.
