Neutrino.DREAM Da Vodka Xmas edition/dm-7025 9:17 Pm



Welcome to Happy New Year with Neutrino.DREAM Da Vodka Xmas!

Neutrino.DREAM Plus v0.01beta/Da Vodka Xmas edition/32bit-colorset

**********************************************************************

**Audioplayer**Movieplayer**PictureViewer**TS MovieBrowser**PIP*Yweb**

**Live-veiw by web**Timeshift**Auto-timeshift per channels zap**

**Muiti-EPG: TPS/D+/Sky Italia/Cyfra+*EPG cash*TuxBox Commander**

**Support gotoXX/USALS commands for DisEqC 1.2 motors**

**Bouquet editor**Virtual Zap**Zapit options menu**

**Manual scan per frequency**Movie-cutter**

**Acoustics spectrum lcd-analyzer**

Lockales: deutsch, dutch, english, french, hungarian, italiano,

lithuanian, polski, portugues, russkij.



file: dm7025_n32plus_v0.01beta_YYYYMMDD.nfi

md5sum:



Kernel 2.6.12.6

version=

comment=ruDbox dream image

creator=ruDbox team



Original bootlogo by •Dream•Box•Busters•/ http://www.dreambox.co.yu



There is 0.01beta-version of Neutrino.DREAM/32bit-colorset for dreambox dm-7025.

**********************************************************************

WE'RE USING Neutrino.DREAM AS BASE IMAGE ON DREAMBOX!

FLASHING IS SAME AS DMM-IMAGE.

NEUTRINO GUI DOES NOT SUPPORT CI-CAM.

**********************************************************************

OUR Neutrino.DREAM Plus USING SPECIAL NEW CHANNELS-FORMAT SETTINGS.

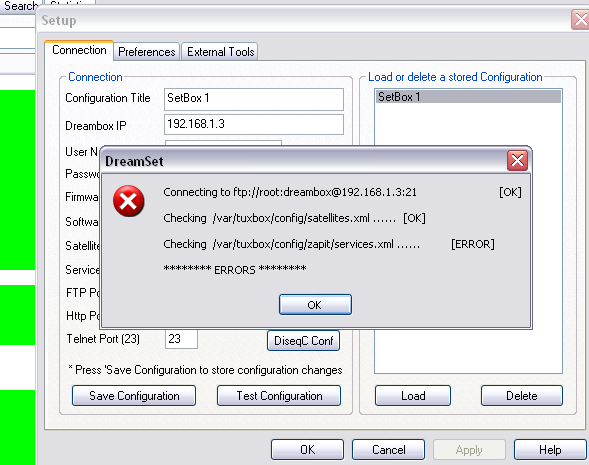

YOU MAY TO EDIT CHANNELS-SETTINGS WITH DreamSet-EDITOR.

DreamSet - http://mmedit9800.tripod.com.

last update 28/12/2006 - DreamSet v2.10 or v.2.0

Special thank to John Vossos for great support nplus-format!

**********************************************************************

WHERE ARE YOU CAN DOWNLOAD OFFICIAL(rudbox team) Neutrino.DREAM IMG:

http://www.info-sat.org,

http://rudbox.da.ru, http://blackbox.my1.ru

**********************************************************************



QuickStart.

-----------

1. Language Setup, Make your choice and press [Lame/Exit]

2. Main Menu, Settings, Network Settings, Make your choice and press [red]setup network now

3. Main Menu, Settings, Misc settings, Timezone, Make your choice

4. Main Menu, Settings, press [red]save settings now

5. Main Menu, Services, Zapit options, set necessary values and parameters, press [red]save settings

("Re-Zap on emu switch time"-parameter is recommended to put value 5 or 6! "Tune timeout" - 20.)

6. Main Menu, Services, Servicescan, set necessary values and parameters, Scan mode: Fast!,

press [red]save settings, start scan

7. Main Menu, Services, Video Settings, Video system: PAL/PAL-M/NTSC

8. Main Menu, Services, Audio Settings, English: off/on

(auto-switch on english-soundtrack if the "English"-name is present on the channels)



TimeShift settings.

-----------

1. Main Menu, Settings, Recording Settings, recording device: direct(file)/off/server

(set to "direct(file)" and set direct recording settings[green], [red]activate changes)

2. Main Menu, Settings, Key Setup, Timeshift, setup new key

(most of keys is not free to use by default, set fee-key(example,bouquet+-) or change non-free

to free before start to set timeshift-key)

3. Main Menu, Settings, Movieplayer Settings, Timeshift pause: on/off

("on" - timeshift starting record and stop movieplyer to pause, "off" - timeshift starting record

and play continue)

4. Main Menu, Addons, Emu Type, Camd: no/mgcamd/newcamd/camd3/scam

(Timeshift supporting mgcamd/newcamd/camd3/scam emu for crypt-channels,

we're using mgcamd+newcs on dm-7025)

**********************************************************************

Question: How to switch on auto-timeshifting mode?

**********************************************************************

ANSWER: Main Menu/Settings/Recording/direct recording settings/Auto-timeshift start pause.

Set entry more than zero. 1 or 2 or 5... or 300.

Now at each zap channel record automatically will begin.

Auto-Record(files) of the previous channel will automatically delete at each zap channels.

Auto-timeshifting mode is a special mode of recording, but it can be switched on original record-mode.

Features menu/Move timeshift to records.



Scripts.

-----------

Main Menu, Scripts

1. Backup your settings - store your personal neutrino settings to

addon files, so next time just upload addon_restore.bin for installing all settings.

2. Load MHW epg - Muitiepg loader/TPS/D+/Sky Italia/Cyfra+

Before You make a start, see /var/bin/realgetepg.sh and editing it for your choice.

Zapit to one of:

NOT TESTED! Canal+/CanalSatellite France : Astra 19.2E / 12363 V / 27500

NOT TESTED! Canal Digitaal : Astra 19.2E / 12515 H / 22000

WORKING! Digital+ : Astra 19.2E / 10847 V / 22000

WORKING! Sky Italia : Hot Bird 13E / 12418 V / 27500

WORKING! Cyfra+ : Hot Bird 13E / 10719 V / 27500

WORKING! TPS : Hot Bird 13E / 10892 V / 27500

3. Reset EPG

4. NOTIMEUPDATE

On different channels there is not an exact times. If there is a file /var/tuxbox/.notimeupdate

and the difference of more than 10 minutes, current time does not update.

5. Readme 1st/Image info



Default Keys(buttons)

-----------

1. [dream/menu] - Main Menu

2. [blue] - Features

3. [help] - channel info

4. [help][help] - channel EPG

5. [help][help][help] - channel EPG bigest font size

6. [help][help][help][help] - channel EPG normal font size

7. [info] - channel info (same as [help])

8. - TS MovieBrowser

9. [audio] - Audioplayer

10. [green] - Select language

11. [red] - EPG Programm Information

12. [tv] at tv-mode - open clock on topleft, second press - close clock

13. [radio] at radio-mode - open clock on topleft, second press - close clock

14. [shift]+[radio] - saving live screenshot to /hdd/screenshots/channelname_programmname_yyyymmdd_hhmmss.bmp

(MTV2._[19E]_MTV2_S_100_TRACKS_OF_200620061231_141022.bmp)

15. [ok] - open channels-list

16. [ok]+[soundoff] - switch on dbv2000/channel-list mode

17. [shift]+[blue] - switch to standby mode and lock rc

18. [shift]+[tv] - lock scart

18. [red]+[unlock key] - unlock rc and scart

19. [shift]+[red] - switch on mini-mode: blocking main menu and features menu, second press - switch off

20. [soundoff] - del files and records



MovieBrowser special Keys(buttons)

-----------

[radio] - screenshot for record-logo

[shift]+[radio] - saving record screenshot as much as you have to press



Neutrino Movie-cutter.

-----------

Trimming-editing of the records material.



Mode-1. Set label " Movie end " for record (file).

Starting from this label the contents of record will be cut off

and thrown out" without of restoration.



Mode-2. Set labels " Movie start " and " Movie end ".

The contents of record between these two labels will be copied in a new file (record).

The original file (record) will not be changed.



Mode-3. Set label " jump over ".

If such label is installed, at usual viewing record the contents inside of a label is passed - ignored.

In our case the contents inside of a label will be written down (copied) in a new file (record).

Such labels inside of one record it is possible to set up to 10 and then we shall receive ten new records.

Differently the label " jump over " is a piece of record (file). Each of such pieces forms new record (file).

The original file (record) will not be changed.



Mode-4. Set labels " jump over ".

"Pasting" of all pieces in one record (file). The original file (record) will not be changed.



Arrangement of labels is carried out at viewing record in TS MovieBrowser by pressing the [blue]-button

and a choice of necessary type of a label.



Cutters Buttons on MovieBrowser.

-----------

- Mode-1.

[audio] - Mode-2.

[text] - Mode-3.

[radio] - Mode-4.



Buttons fast rewind of record.

-----------

<1> - On 1 minute ago

<4> - On 5 minutes ago

<7> - On 10 minutes ago

<3> - For 1 minute forward

<6> - For 5 minutes forward

<9> - For 10 minutes forward

<2> - In the beginning of record

<5> - In the middle of record

<8> - In the end of record

PgUp - for 10 seconds forward

PgDown - on 10 seconds ago



Channels logo.

-----------

Picture types - JPG and GIF.

The recommended size - 52 x 39 points.

The storage directory of files -/var/share/icons/logo/.

File with a logo the name from values of three parameters is given.



/ts id/on id/s id/.gif



TS id = "042a" on = "0001" frq = "11739000" inv = "2" sr = "27500000" fec = "3" pol = "1"

S i = "6ff8" n = " MTV Hits. [19E] " v = "be1" a = "be2" p = "be1" pmt = "151" tx = "0" t = "1"/



Accordingly the file for the channel " MTV Hits. [19E] " should have the following name.






EPG Cash.

-----------

Settings->Misc settings->-------Epg settings-------

Be carefull with "Dir for epg cash"!!!

There is must be freespace on hdd or your mount-partion/directory named as /hdd/, /mnt/, /media/, /tmp/.

Example: /hdd/epg, /mnt/your_dir/epg, /media/your_dir .



Acoustics spectrum lcd-analyzer

-----------

For audioplayer play-mode.

Main-menu->settings->audioplayer->lcd a-spectrum - no/yes



Live-veiw from dreambox-web.

-----------

Before to start Live-veiw from dreambox-web:

install VLC http://downloads.videolan.org/pub/videol...0.8.x-win32.exe



Default cardserver and emu.

-----------

Newcs is default cardserver, mgcamd - emu.

**********************************************************************

Question: How to activate mgcamd and newcs?

ANSWER: Cardserver newcs mustbe to activate/restart at first!

ANSWER: Main Menu/Addons/Cardserver: no->newcs /Restart cardsever

ANSWER: Main Menu/Addons/Camd: no->mgcamd /Restart camd

**********************************************************************

Question: How to install camd3 or @box?

ANSWER: camd3 mustbe to added /var/emu as - camd3, pcamd to /var/bin as pcamd, othere files to /var/keys

ANSWER: @box mustbe to added /var/emu as - @box or camdd, othere files to /var/keys

Question: How to activate camd3 or @box?

ANSWER: Cardserver newcs mustbe deactivate at first!

ANSWER: Main Menu/Addons/Cardserver: newcs->no /Restart cardsever

ANSWER: Main Menu/Addons/Camd: no->mgcamd->...camd3 /Restart camd

ANSWER: Main Menu/Addons/Camd: no->mgcamd->...@box(or daemon) /Restart camd

**********************************************************************

Please, remember that

"Re-Zap on emu switch time"-parameter is recommended to put value 5 or 6!

See QuickStart.

You can start recording the crypt-channel and...

and zap to next crypt-channel and to look it or to zap next and next, etc.

JUST SWITCH EMU TO MGCAMD AND START YOU RECORD/VIEWING!

Mgcamd mustbe present in image inside.



PiP (a picture in a picture) on Neutrino/dm-7025

-----------

That PiP has earned in a mode of "record", before inclusion of boxing, it is necessary to make loop-connection.

Connect "output" of the first tuner on "input" of the second. Now it is possible to switch on box.



1. Call the list of channels - button " OK ".

2. Rise in the list on that channel which wish to observe in window PiP.

3. Press button " VIDEO ".

In the left top corner there will be a PiP-window with a picture of the chosen channel.



Simultaneously in an active mode it is possible to look channels only same tp!



Additional buttons of management.



Mode move/resize:

SHIFT+GREEN - movings and change the size of a PiP-picture,

SHIFT+YELLOW - movings and change the size of the basic tv-picture.



In this mode " big arrows " move, BOUQUET +/- changes the size, OK - to keep, LAME/EXIT - to skip.



Mode of viewing at PiP on mode:

" BOUQUET + " - zoom in/out for a PiP-window,

" BOUQUET - " - to switch off a PiP-window,

The little-arrow ">" - changes the basic (live) and PiP channels places.

If PiP is not included, pressing an little-arrow ">" - includes a PiP-window for the current channel.



Mode of viewing of records:

VIDEO - switches on and off a PiP-window of the channel on which were up to an entrance in a player of records;

OK - at viewing record call the list of channels, only if to this button other function is not set;

VIDEO - switches on and off a PiP-window of any channel from the list caused by pressing on "OK".



Mode of record of the channel.

Work same buttons as in a mode of viewing of channels.



How to get updates and addons.

-----------

At first, dreambox must has internet-connection!

1. Main Menu, Service, Software Update, Updatemode: internet

2. search for new version...



How to install addons manual.

-----------

At first, our neutrino's addons is not same as enigma's addons!

1. Put addon-file(addon_name.bin) to /tmp

1. Main Menu, Service, Software Update, Updatemode: manual(ftp)

2. search for new version...

3. Filebrowser /tmp/, press to addon-file(addon_name.bin)

4. follow instruction



We have nothing against modifications to our Neutrino

images, if you follow our small conditions, namely:

1. The original Readme files must remain in archives with

your mod image.

The same counts to all readme and info files within the image.



How can you check who is original creator of the image?

There is information in file called ".version" in root

directory of every image.

Please, leave it also unchanged.



2. NO KEYS/RSA/ROM files within your renamed - modified image.

3. We are glad, NAME of our team(ruDbox) in file names of your

archives and mod image independently to see,

e.g. - ruDbox **** _mod_your_name or your_name_mod_ruDbox ***.



That's all.

Certainly you cannot follow our requirements and continue

everything like it is.

Believe, however, that attention of our friends who use

our private images is enough for us.



ruDbox Team

#dbox2 /Dalnet





---



er staan wel download URL's in maar echt wijs word ik daar niet van. als iemand een betere, toegestane link heeft, aub ff posten.







merDe

[jph]

Ome merde , Waar heb jij die info vandaan dat dit voor een 7025 is ?

Ben op de russische site gaan kijken en kan niets terug vinden voor de 7025.



Heb het ondertussen al gevonden en tijdelijk geplaatst op mijn homepage.

Veel succes ermee. Ik ga deze in elk geval testen deze avond.



http://tinyurl.com/y73yz6

[Dreamguy]

IK heb de image inmiddels gedownload. Even gekeken, maar is wel behoorlijk verschillend t.o.v. andere images. Er is bijv. geen /var/enigma2, waardoor ik de settings er niet op kon zetten. Verder ook nog van alles anders dan ik gewoon ben. Ik laat deze image dus maar zitten en wacht op de nieuwe Gemini of nog liever een PLI.

[jph]

Citaat:

Er is bijv. geen /var/enigma2, waardoor ik de settings er niet op kon zetten. Verder ook nog van alles anders dan ik gewoon was. Ik laat deze image dus maar zitten en wacht op de nieuwe Gemini of nog liever een PLI.

Kan die enigma2 map dan(manueel) niet aangemaakt worden ? Moet daar anders nog iets speciaal in ? Zal het eens uitzoeken en later op terug komen.

[FeReNGi]

Deze image maakt gebruik van "Neutrino" ipv "Enigma" dus vandaar gaat je geen Enigma directory's vinden !

[jph]

Citaat:

Deze image maakt gebruik van "Neutrino" ipv "Enigma" dus vandaar gaat je geen Enigma directory's vinden !

Waar komen de kanaal lijst dan te staan ? Krijg een fout in dreamset.

[CAPTAIN PICARD]

satellites.xml in

var/tuxbox/config/



en de rest in

var/tuxbox/config/zapit



het worden dan 4 xml bestanden in totaal.



bouquets.xml

satellites.xml

services.xml

ubouquets.xml

[jph]

Dit heb ik ondertussen ok al gevonden maar wat ik mis is de Cccam en ik wil ook de juiste instelling voor mijn lnb's.

Ik heb 3 lnb (23 - 19 - 13°, in deze volgorde poort A,b,c) en werk met 2 4/1 switchen. Hoe moet ik deze juist instellen in de config ?

[FeReNGi]

In DreamSet 2.1 dien je neutrino te selecteren ipv enigma2

[jph]

Citaat:

In DreamSet 2.1 dien je neutrino te selecteren ipv enigma2

Dat is niet het probleem. Ik kan alleen maar de kanalen van de eerste lnb (23°) nemen.En de 2 andere niet. Heb in de instellingen al vanalles geprobeerd maar kom er niet aan.Iemand een idee hoe deze in te stellen ?

[jph]

Ik heb deze image nu werkend op alle lnbs die ik heb maar wil nu cccam en evocam installeren.Tevergeefs al gezocht op het internet maar kan het niet direct vinden.

Iemand een idee waar ik deze kan vinden ? Opgelet moet wel een bestand zijn met extensie bin.

[Ome Merde]

Ome merde , Waar heb jij die info vandaan dat dit voor een 7025 is ?



bij IHAD





merDe

[jph]

Citaat:

Ome merde , Waar heb jij die info vandaan dat dit voor een 7025 is ?bij IHAD

Ik had het ondertussen ook al gezien en heb het al geinstalleerd maar zoals je kan zien in de vorige posts heb ik er probs mee. Zoek dus nog altijd evo- en cccam.

[spongebob]

wat is de meerwaarde eigenlijk van neutrino boven enigma??? werkt deze image soepel genoeg en kan je plugins en cams downloaden??

[jph]

Citaat:

wat is de meerwaarde eigenlijk van neutrino boven enigma??? werkt deze image soepel genoeg en kan je plugins en cams downloaden??

Wel, ik kan je nu al zeggen dat ie veel sneller boot dan enigma2 maar downloaden van plugins ben ik nog altijd naar op zoek. Alsook naar cams.
De epg is bvb ook uitgebreider (meerdere dagen dan in enigma2).
