New BH images solo and duo 1.4.4


Miro

Recommended Posts

Html:
BlackHole Vu+ Duo v. 1.4.4 Multiboot

















WHAT'S NEW?





- New Skin Army unica

- lbdreamdvd updated

- Added ntfs-3g (to mount ntfs drives in read/write)

- Added usb wifi RT3070 chip support





- NEW NEW NEW FULL UPnP and Dlna support added:

MEDIATOMB SERVER

DJMOUNT CLIENT





BLACK HOLE IMAGES OFFERS NOW THE BEST SOLUTION FOR BOX CONNECTIONS TO SHARE MEDIA FILES IN HOME NETWORK.

NOT NEED CONFIGURATIONS NO NEED MOUNTPOINTS NO NEED SAMBA CIFS NFS OR OTHER NETWORK CONNECTIONS JUST ACTIVATE MEDIATOMB ON THE BOX SERVER AND DJMOUNT ON BOX CLIENTS.

TO USE UPNP YOU HAVE TO INSTALL BH IMAGE 1.4.4 AT LEAST IN TWO BOXES

DON'T USE SAMBA NFS OR CIFS TO CONNECT BOXES !!

IN THE FIRST BOX (BOX WITH HDD) YOU WILL HAVE TO ENABLE MEDIATOMB (SERVER)

IN THE SECOND BOX (CLIENT) YOU HAVE TO ENABLE ONLY DJMOUNT (CLIENT)

AT THIS POINT YOU WILL SEE FROM THE CLIENT MEDIAPLAYER ALL THE FILES OF THE SERVER.





YOU DON'T NEED TO CONFIGURE ANYTHING, MEDIATOMB SERVER AND DJCLIENT ARE FULLY PRECONFIGURED IN BLACK HOLE IMAGES TO WORK ON YOUR BOXES !!









About Mediatomb:





You can use Mediatomb for Upnp server on your box and then connect all other boxes with Upnp client. In this way you will have the files of server available on your clients in folder /media/upnp. You will have available in MediaPlayer YOUR MEDIA files.

You don't need to configure router or other things.

Mediatomb include a webinterface too to manage your media.

Mediatomb webif url: http://ip_box:49152 (example: box ip: 192.168.0.23 - Mediatomb webif = http://192.168.0.23:49152)

If you want to play with Mediaplayer configs you can find docs and howto: http://mediatomb.cc

Location of config file: /.mediatomb/config.xml





Mediatomb features:





browse and playback your media via UPnP

metadata extraction from mp3, ogg, flac, jpeg, etc. files.

Exif thumbnail support

user defined server layout based on extracted metadata (scriptable virtual containers)

automatic directory rescans

highly flexible media format transcoding via plugins / scripts

sophisticated web UI with a tree view of the database and the file system, allowing to add/remove/edit/browse your media

support for external URLs (create links to internet content and serve them via UPnP to your renderer)

support for ContentDirectoryService container updates

Active Items (experimental feature), allows execution of server side scripts upon HTTP GET requests to certain items

highly flexible configuration, allowing you to control the behavior of various features of the server

WARNING: This Image has the latest drivers and CAN NOT be installed in multiboot.

The image MUST be installed in the flash.

Black Hole can not support images not installed in the flash.





This latest version of the Black Hole series has been entirely rewritten and improved in the code for maximum stability and performance.





Please note that of all images Black Hole now has the best epg system:

- Integrated OpenEpg

- Rytec dedicated epg.dat

- New system epg.dat outside.

This last feature gives the possibility to various forums or communities to create their favorite EPG data files and load them into a web space.

Community members can then download it from our servers.

This feature provides other benefits such as:

Increase download speed of EPG

Download EPG from any channel

Schedule the download of EPG decoder even during standby

Users can customize the providers using Add / Remove function





Main functions of the buttons on the remote

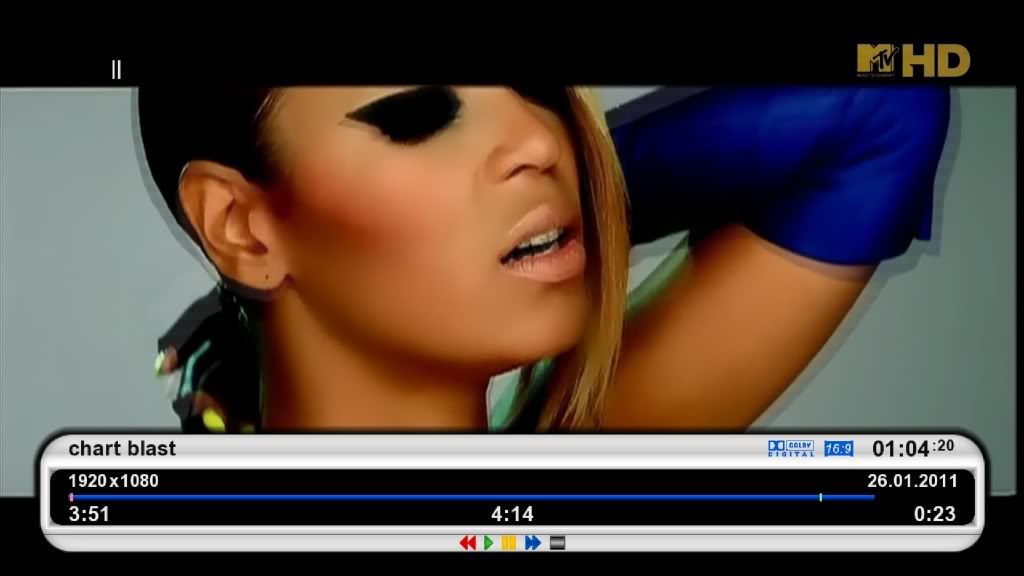

OK button = Skin with simple information

OK button x 2 = Extra Info Skin

Blue button = Black Hole Blue Panel

Blue button and then Red button = Black Hole Epg Panel

Blue button and then Yellow button = System Monitor Panel

Blue button long press = Extensions

Yellow button = Time Shift

Green button = Black Hole Green Panel

Green button long press = Subservices

Green button and then Red button = Fast Plugin Setup

Green button x 2 = Fast Plugin

Button Red = Start Record





Addons





Green button and then Yellow button takes you to:-

Dedicated server for BlackHole addons

Download and install additional packages from the Black Hole server

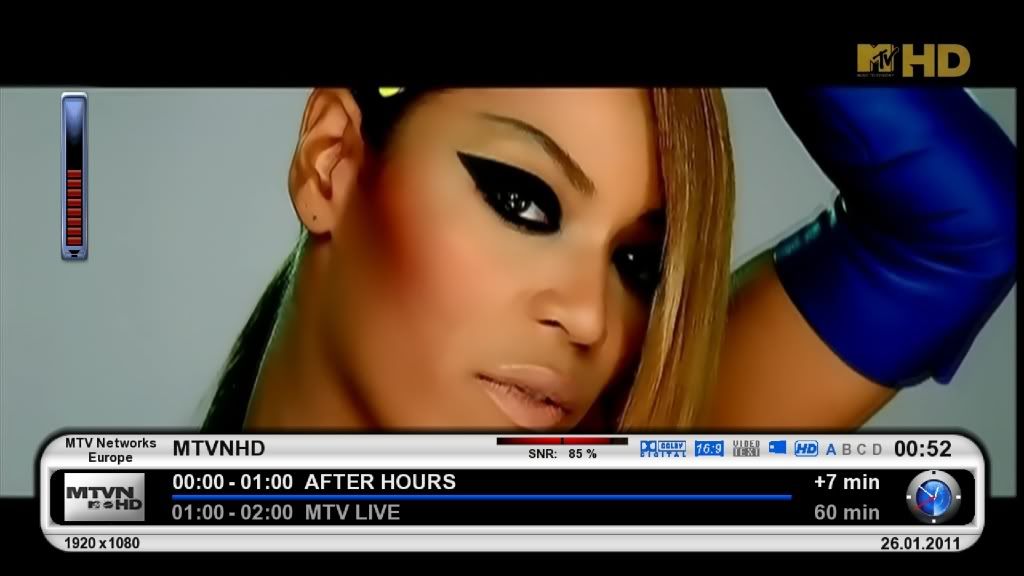

Infobar / OSD





Analog Clock Enigma2

Channel orbital location





Advanced Tuner Info: Sr Freq Pol Fec

Signal SNR, BER

Infobar picons





Characteristics of BlackHole Panels

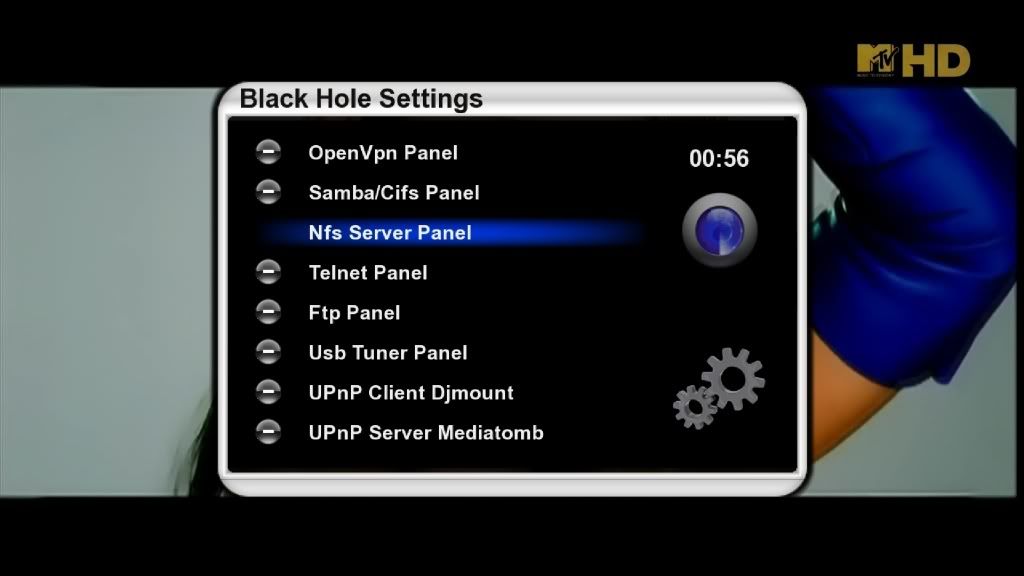

Blue Panel

Extra Settings





Black Hole Cron Manager (Manage schedules)

OSD Settings (OSD configuration)

Manager Kernel Modules (Kernel module operator)

Inadyn Settings (Configure Inadyn)

Swap File Settings (Configure File Swap)

Hard Disk Settings (Configure Hard Drive)

Black Hole Mount Wizard (Mount points)

OpenVPN Panel ( OpenVPN Panel)

Samba / CIFS Panel ( Samba Panel)

NFS Server Panel ( NFS server Panel)

Telnet Panel ( Telnet Panel)

FTP Panel ( FTP Panel)

Usb Tuner Panel





Info Panel

1 - E2 Setting (Enigma2 configurations)

2 - Service Information (information system)

3 - About (info)

Memory (Memory)

Space (capacity)

CPU (processor)

Process (process)





EPG Panel

Global settings (global settings EPG)

Setting Provider (ISP settings)

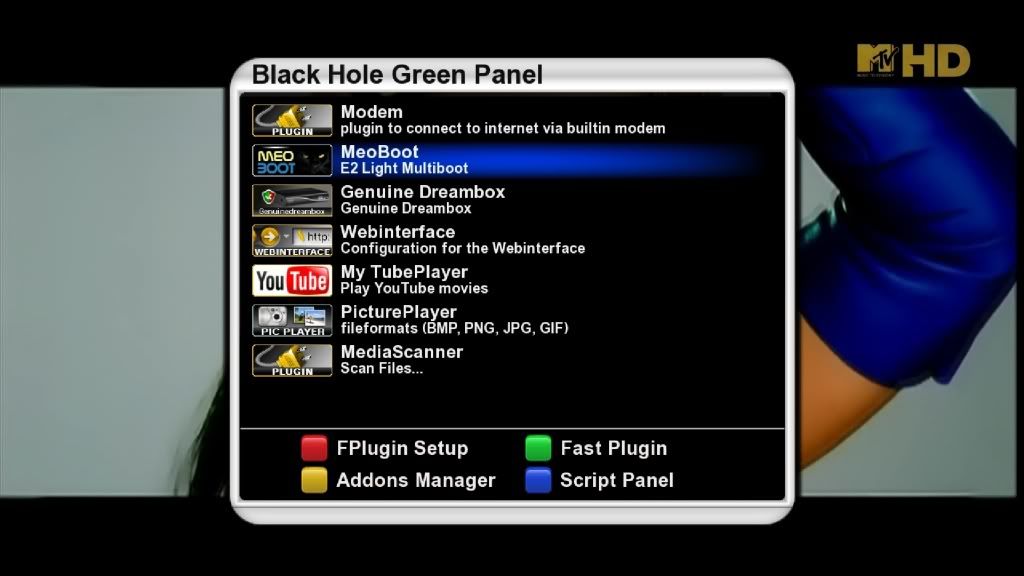

Green Panel





Fast Plugin Setup (Configure quick access to your favourite plugin)





Fast Plugin (Access your favourite plugin)





Addons (added)

Addons Download Manager (Manager for package downloading)

Installation manual packages (Manual installation of Black Hole packages)

Manual Install IPK packages (Manual installation of IPK packages)

Addons Uninstall Panel (Uninstalled packages)

Black Hole Statistics (See connections, top downloads and more)





Credits

Thanks to the group of Beta Testers.

Thanks to Rytec for providing us with the server with all epg.dat files.

Thanks to MaxZ4 for Integrated EPG loader.

Thanks to Lukkino (VDR-Italy) for the source code of OpenTV.

Thanks to Reinh@rd for the file satellites.xml.



Link to comment
Share on other sites


bedankt voor deze info !



VU solo 4k ,twin satelliet tuner en 1 kabel tuner en VU solo se v2 ,dual kabel tuner...E85 Maximum multi focus schotel en een Triax 88cm schotel met een 2 way Triax lnb rail....5.0w 0.8w 4.8e 9.0e 13e 19.2e 23.5e 28.2e....VTI 14.0.5 - 6 Inverto black ultra twin lnb's en 2 Alps twin lnb's, Nvidia shield tv.

Link to comment
Share on other sites

Citaat:
betekend dat ook DNLA ondersteuning met zo'n platte beeldbuis die op slaapkamer staat en .ts afspeelt van de hdd in je VU+ ???

ciao



Dit is slechts het begin mogelijkheden zijn groot.

Je kan ook gebruik maken van jou eigen configuraties.



Voor mij is het ook nieuw .Maar doet het goed, wat ik heb getest.

Link to comment
Share on other sites

Als je het juiste bestand voor de BH image hebt

BH image emu pakketten vindt je op een aantal forums.



Er zijn ook plugins voor directe emu download.



Instalatie van alle BH image pakketen :



bestand kopiëren naar /tmp

groen knop>>gele>>Manual Install Bh packges

Link to comment
Share on other sites

Je kan ook de addonserver package handmatig installeren.

Het bestand staan ergens in een topic van een iets oudere build (sorry weet zo 123 niet precies waar). of pm je mail adres even en dan mail ik hem wel ff.



Als je deze geïnstalleerd hebt kan je de cam installeren via de groene knop.

VU+ Duo - 2x sat - 1x DVB-T (Terratec Tstick RC)

Triax TDS110 19,2/23,5/28,2/13,0 - Triax TDS88 met moteck sg2100 rotor.

2 x DM500 - Nabilo

NSLU2 met CCcam 2.1.4 server

Samsung UE40B7000 (LED)



Link to comment
Share on other sites

Ziet er gelikt uit, maar goed dat is dus smaak. Ben benieuwd of die skin ook de uitgebreide Skininfo van BH ondersteund want op de afbeelding zie ik alleen de simple skin info.



Hebben wij weer wat om mee te spelen in het weekend smile. Juist de nieuwe functie was een van de redenen om een NAS te gaan nemen, maar alweer mooi werk van BH Team.



Mijn ervaring is dat met de Nabilo Plugin de BH niet onderdoet met zijn softcamondersteuning dan bijvoorbeeld Pli. Kennelijk gebruiken anderen niet de juiste plug-in om de softcam te installeren.





VU+ Duo2 met  4x DVB-S2 / 2x Dual DVB-S2 Tuner. Plugin remote channel stream converter

Wavefrontier T90. 6x Google TV Android 4K clients.

Link to comment
Share on other sites

Origineel bericht van: Duolist
Origineel bericht van: Neptunus
Toch maar weer terug naar de Pli 2.0, dan maar geen partnerbox plugin.
Die heeft ook de Partnerbox plugins.


Dat weet ik maar op de één of andere manier krijg via partnerbox geen verbinding met de VU en wel met DM8k

Dreambox 8000 & VU+ Duo
Synology DS201 NAS
ITV van KPN + digitenne

LG55B6V Oled TV

Link to comment
