verschil inverto black premium twin en een inverto black u


blitzteam

Aanbevolen berichten


Black Premium
Selected Twin 40mm LNB
IDLB-TWNL40-PREMU-OPP

This high-endarrow-10x10.png LNB was specially selected from our production line. andIt sets new standards of quality and reliability.The LNB enables the reception of signals from one satellite and its distribution to maximum two Set Top Boxes with Single Tuner (or to one STB with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Main Features:


  • Very low Noise Figure
  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Power Consumption
  • High Cross Polarization Isolation
  • High Frequency Stability


Product Specifications





Low Band Input Frequency Range 10.7 ~ 11.7 GHz

Low Band Output Frequency Range 950 ~ 1950 MHz

Low Band LO Frequency 9.75 GHz

High Band Input Frequency Range 11.7 ~ 12.75 GHz

High Band Output Frequency Range 1100 ~ 2150 MHz

High Band LO Frequency 10.6 GHz

Noise Figure 0.2 dB Typ. (0.7 dB Max.)

LO Initial Accuracy +/- 1.0 MHz

Max. LO Temperature Drift +/- 3.0 MHz

Max. Phase Noise (@ 10 kHz) - 85 dBc / Hz

Max. Conversion Gain 55 dB Min.

Gain Ripple (Over 26MHz Bandwidth) +/- 0.75 dB

Gain Variation (Over Full Band)  +/- 4 dB

Max. Image Rejection 40 dB Min. 1 dB

Compression Point (@ Output) 0.0 dBm

Min. Cross Polarization Isolation 22 dB

Min. Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V

Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V

Control Signal Cc (Band Switching) 22 +/- 4 kHz

Output VSWR 2.5 : 1  In-Band Spurious - 60 dBm

Max. Current Consumption 180 mA Max. @ 11 ~ 20 V

Operating Temperature - 30 °C  ~  + 60 °C

Output Impedance 75 O

Output Connector F-Type (Female)

Weight 181 g

1x Dreambox 900UHD Openatv 7.4 2x  TRIAX 110 TDS 4x twin lnb 1x Channel Master 1.20

1x DREAMBOX 8000 HD pvr 1x Dreambox 800se  1x GIGABLU HD QUADPLUS  1x Sab unix triple 1x Xsarius Galaxy 4K  1x gigablue trio

1x Samsung UE65MU7070 4K Ultra HD Smart LED  1x Samsung  UE46F6650SSXXN led



Link naar reactie
Delen op andere sites

BLACK Ultra Twin HGLN 40mm LNB IDLB-TWNL40-ULTRA-OPP

This LNB is a high performance product featuring the lowest noise figure available to address the need for superior reception under the edges of the satellite footprint skirt. Thanks to its novel front-end architecture and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. This LNB enables the reception of signals from one satellite, its distribution to maximum up to two  Set Top Boxes with Singlearrow-10x10.png Tuner (or one STB with Twin Tuner) and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Main Features

  • Superior Phase Noise Performance, DVB-S2 (HDTV) compliant
  • Excellent Cross Polarization Isolation
  • Very low Spurious Levels
  • Superior Noise Figure
  • Higher Conversion Gain
  • Ultimate Reliability


Product Specifications





Low Band Input Frequency Range 10.7 ~ 11.7 GHz

Low Band Output Frequency Range 950 ~ 1950 MHz

Low Band LO Frequency 9.75 GHz High Band Input Frequency Range 11.7 ~ 12.75 GHz

High Band Output Frequency Range 1100 ~ 2150 MHz

High Band LO Frequency 10.6 GHz Noise Figure 0.2 dB Typ. (0.7 dB Max.)

LO Initial Accuracy +/- 1.0 MHz

Max.LO Temperature Drift +/- 3.0 MHz

Max. Phase Noise (@ 10 kHz) - 90 dBc / Hz

Max. Conversion Gain 60 dB Min.

Gain Ripple (Over 26MHz Bandwidth) +/- 0.75 dB

Gain Variation (Over Full Band)  +/- 4 dB

Max. Image Rejection 40 dB Min. 1 dB

Compression Point (@ Output) 0.0 dBm

Min. Cross Polarization Isolation 22 dB

Min. Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V

Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V

Control Signal Cc (Band Switching) 22 +/- 4 kHz

Output VSWR 2.0 : 1  In-Band Spurious - 60 dBm

Max. Current Consumption 180 mA Max. @ 11 ~ 20 V

Operating Temperature - 30 °C  ~  + 60 °C

Output Impedance 75 O

Output Connector F-Type (Female)

Weight 181 g

1x Dreambox 900UHD Openatv 7.4 2x  TRIAX 110 TDS 4x twin lnb 1x Channel Master 1.20

1x DREAMBOX 8000 HD pvr 1x Dreambox 800se  1x GIGABLU HD QUADPLUS  1x Sab unix triple 1x Xsarius Galaxy 4K  1x gigablue trio

1x Samsung UE65MU7070 4K Ultra HD Smart LED  1x Samsung  UE46F6650SSXXN led



Link naar reactie
Delen op andere sites

Black Premium

Conversion Gain 55 dB Min





BLACK Ultra Twin HGLN 40mm LNB IDLB-TWNL40-ULTRA-OPP

Conversion Gain 60 dB Min Deze is wel wat beter voor ontvangst

en de prijs is niet zo veel verschil

aangepast door smetje limb.BE

1x Dreambox 900UHD Openatv 7.4 2x  TRIAX 110 TDS 4x twin lnb 1x Channel Master 1.20

1x DREAMBOX 8000 HD pvr 1x Dreambox 800se  1x GIGABLU HD QUADPLUS  1x Sab unix triple 1x Xsarius Galaxy 4K  1x gigablue trio

1x Samsung UE65MU7070 4K Ultra HD Smart LED  1x Samsung  UE46F6650SSXXN led



Link naar reactie
Delen op andere sites

en deze van mti is ook een goede twin lnb



MTI AP82-XT2N Universal High Line Twin 0.2 dB


  •     A high performance LNB with 2 output?.
  •     Low phase noise.
  •     DVB-S2 ( HDTV ) compliant.
  •     Low noise figure.
  •     Low power consumption.
  •     High cross-pole performance.
  •     High frequency stability.


Specification:

    Low Band Input Frequency Range: 10.7~11.7 GHz.
    Low Band Output Frequency Range: 950~1950 MHz.
    Low Band LO Frequency: 9.75 GHz.
    High Band Input Frequency Range: 11.7~12.75 GHz.
    High Band Output Frequency Range: 1100~2150 MHz.
    High Band LO Frequency: 10.6 GHz.
    Noise Figure: 0.2 dB Typ.
    LO Initial Accuracy: +/- 1.0 MHz Max.
    LO Temperature Drift: +/- 3.0 MHz Max.
    Phase Noise (@ 10 kHz): - 90 dBc / Hz Max.
    Conversion Gain: 65 dB Min.
    Gain Ripple (Over 26MHz Bandwidth): +/- 0.75 dB.
    Gain Variation (Over Full Band) : +/- 4 dB Max.
    Image Rejection: 40 dB Min.
    1 dB Compression Point (@ Output): 0.0 dBm Min.
    Cross Polarization Isolation: 25 dB Min.
    Control Signal Ca (Vertical Polarization): 11.0~14.0 V.
    Control Signal Cb (Horizontal Polarization): 16.0~20.0 V.
    Control Signal Cc (Band Switching): 22 +/- 4 kHz.
    Output VSWR: 2.0 : 1.
    In-Band Spurious: - 60 dBm Max.
    Current Consumption: 110 mA Max. @ 11~20V.
    Operating Temperature: - 30 °C ~+ 60 °C.
    Output Impedance: 75.
    Output Connector: F-Type (Female).
    Weight: 0.185 Kg.
    Warranty : 2 years.

1x Dreambox 900UHD Openatv 7.4 2x  TRIAX 110 TDS 4x twin lnb 1x Channel Master 1.20

1x DREAMBOX 8000 HD pvr 1x Dreambox 800se  1x GIGABLU HD QUADPLUS  1x Sab unix triple 1x Xsarius Galaxy 4K  1x gigablue trio

1x Samsung UE65MU7070 4K Ultra HD Smart LED  1x Samsung  UE46F6650SSXXN led



Link naar reactie
Delen op andere sites

Beste blizteam


Een Inverto Black Premium geeft iets mindere prestaties dan een Inverto Black Ultra maar de verschillen zijn echt niet groot. De Inverto Black Premiun behoort zeker tot de hele goede lnb’s maar de Inverto Black Ultra is onbetwist de top onder de lnb’s.

In een vergelijkende test van het Duitse blad “Satvision” komt de Inverto Black Ultra als testwinnaar uit de bus. Hij krijgt voor de ontvangstprestaties maar liefst 48 van de maximaal 50 behaalbare punten. Tweede was de Octagon Optima die 45 punten voor de ontvangst kreeg.
Zie deze test: http://www.inverto.tv/IMG/faq/2013%20-%2006%20Satvision%20comprehensive%20LNB%20test%20%28De%29_1.pdf

Link naar reactie
Delen op andere sites

  • 11 maanden later...

Eerst keek ik ook veel naar conversion gain, de meter gaat verder in de hoek das moooi maar meer belanrijk is de

Cross Polarization Isolation: 25 dB Min die bij mti hoger is en beter zwakke signalen filtert.

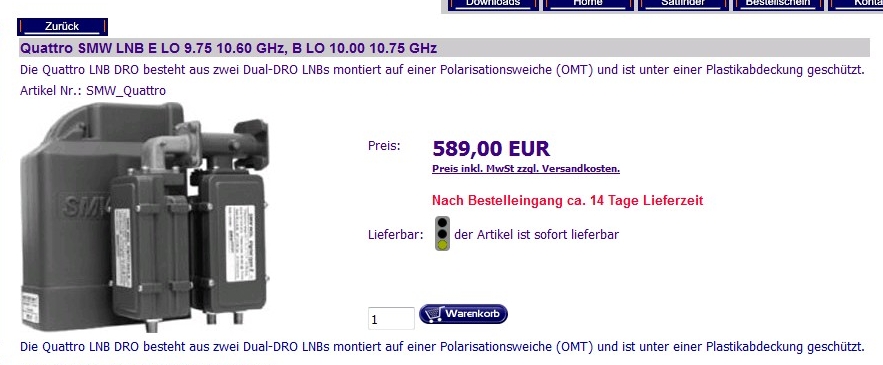

Maximale Cross Polarization Isolation heeft de smw type E lnb ( 32 - 36 db! )

in det geval voor ptime focus dx  , kost wat maar dan heb je ook wat ;)

aangepast door Phoenixx
Link naar reactie
Delen op andere sites

Beste Phoenixx

Maximale Cross Polarization is niet de norm, minimale Cross Polarization is de norm en die is bij de MTI SMW type E 31,5dB.

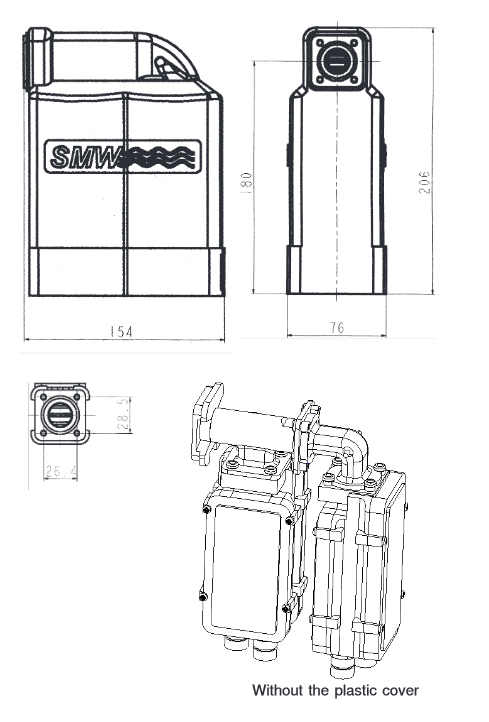

Maar als je nu met exotische lnb's op de proppen komt, zou de dan ook aan willen geven hoe je die op een normale consumentenschotel moet monteren, zie bijlage.



Link naar reactie
Delen op andere sites

  • 1 jaar later...

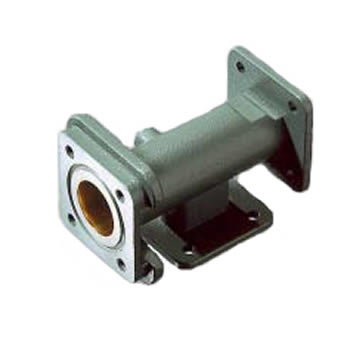

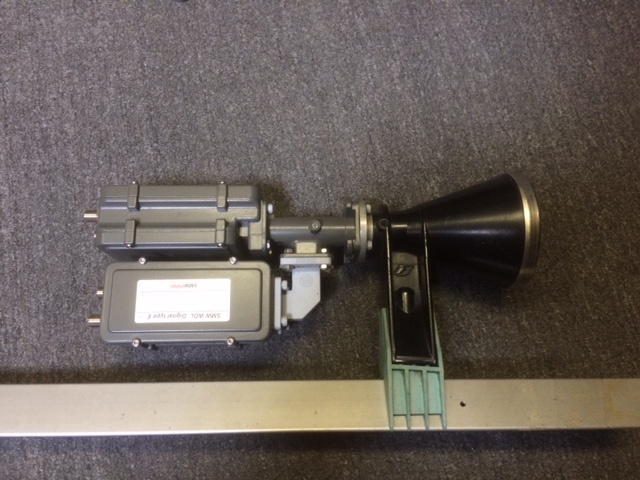

Sprietje , de losse feedhoorns hebben net als de Fibo lnb adapter , meerdere gaten op verschillende afstanden .

Ook op de Fibo 90 past dit setje mits je het juiste haakse verbindingsstuk gebruikt .







Voor de prijs hoef je het niet te laten :crazy:







aangepast door trust

Het verschil tussen theorie en praktijk is mijn uitdaging .
Octagon SF8008 4K   Edision Primo IP S2  Dr.HD F16

1.8 m ChannelMaster Offset in tuin 53º E - 45º W Jaeger SMR 1224 Usals met 5 Lnb wisselaar 2x Ka - Ku - C band Lin / Circ

1.2 m Echostar Offset  aan schuur  53º E    34.5 W   Twoteck Twinrotor met 3 Lnb wisselaar Ku - Ku low - Ka

Link naar reactie
Delen op andere sites

  • 2 maanden later...

Ik heb nu het probleem met een Inverto Black Ultra single LNB dat-ie niet omschakeld naar verticale polarisatie.
Dus ik heb dan weer wel zo m'n twijfels over de duurzaamheid van zo'n goedkope LNB....



Steeds een nieuwe LNB kopen omdat-ie zo snel stuk gaat is nu ook weer niet de bedoeling lijkt me.

Kan iemand me een linkje sturen welke MTI ik nu precies moet kopen? Ik zie de MTI AP82-XT2N, de MTI AP82-XT (dus zonder 2N), dan weer "een MTI High Gain (70dB) LNB". En is er ook een single variant? Of is die slechter in ontvangst?

Wat te denken van een losse feedhorn met flens-LNB? Geeft dat nog betere ontvangst van zwakke signalen? Ik had ooit zo'n set (Invacom TWF-031) maar de Inverto Black Ultra presteert net iets beter.
Dus welke flens LNB kunnen jullie aanraden? De Inverto single LNB Black Pro IDLR-SINFOO bijv.?

Dreambox DM920: 2x Triple tuner (2x DVB-S2X multistream + DVB-C/T2)

Xtrend ET10000: 1x DVB-S2, 2x DVB-C/T2, IPTV OpenPLi 8.3
VU+ Duo
/ Dreambox DM800 / TBS 5925
Channel Master 180cm offset: 39.0°E-37.6°W, SAB 97 schotel 45.1°E-60°E, 80cm vast: 28.2°E/23.5°E/19.2°E/13°E | DVB-T/DAB: VHFIII/UHF combi-antenne op zolder.
