Smartreader - smargo problemen

Sverige

Door Sverige
in Vu Plus

 Delen

Aanbevolen berichten

Sverige Superster

Sverige

Geplaatst:
Geplaatst:

Sinds een paar dagen heb ik een probleem met de externe usb card reader, waarmee ik de HD+ kaart uitlees.



's avonds zet ik de Ultimo 4k uit, niet stand by.

Als ik hem de volgende avond aanzet, werken beide interne cardreader gewoon zoals het hoort, maar de externe smartreader niet.



Gisteren heb ik de oscam een update gegeven... ik zag dat daar een update klaarstond, en dacht dat dit het euvel zou kunnen oplossen.

Niet dus.

Als ik in het camcenter de softcam herstart, dan werkt de HD+ kaart gewoon weer.

Het is dus niet zo dat de usb stekker niet goed contact maakt, of dat de smartcard er niet goed inzit...  gewoon herstarten van de cam, en het werkt.

Wat kan de reden zijn?



Dit is de log van oscam na het opstarten:



2018/10/29 16:20:18 00000000 s     (main) Host name      = vuultimo4k
2018/10/29 16:20:18 00000000 s     (main) Release        = 3.14.28-1.12
2018/10/29 16:20:18 00000000 s     (main) Version        = #1 SMP Fri Apr 6 08:48:21 CEST 2018
2018/10/29 16:20:18 00000000 s     (main) Machine        = armv7l
2018/10/29 16:20:18 00000000 s     (main) Stb model      = dm8000
2018/10/29 16:20:18 00000000 s     (main) Stb vumodel    = vuultimo4k
2018/10/29 16:20:18 00000000 s     (main) Stb boxtype    = vuultimo4k
2018/10/29 16:20:18 00000000 s     (main) creating pidfile /tmp/oscam.pid with pid 1035
2018/10/29 16:20:19 00000000 s   (config) userdb reloaded: 1 accounts loaded, 0 expired, 0 disabled
2018/10/29 16:20:19 00000000 s     (main) signal handling initialized
2018/10/29 16:20:19 00000000 s   (config) 15 provid's loaded
2018/10/29 16:20:19 00000000 s   (config) 255 service-id's loaded in 3 ms
2018/10/29 16:20:19 00000000 s   (reader) ORF-ICE [internal] creating thread for device /dev/sci0
2018/10/29 16:20:19 00000000 s   (reader) CanalDigital [internal] creating thread for device /dev/sci1
2018/10/29 16:20:19 00000000 s   (reader) hd02 [smartreader] creating thread for device SRv2;007:002
2018/10/29 16:20:19 1044D2EE r   (reader) ORF-ICE [internal] Reader initialized (device=/dev/sci0, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/29 16:20:19 1044D2EE r   (reader) ORF-ICE [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/29 16:20:19 00000000 s     (stat) loadbalancer: could not open /tmp/.oscam/stat for reading (errno=2 No such file or directory)
2018/10/29 16:20:19 5D9AD708 r   (reader) CanalDigital [internal] Reader initialized (device=/dev/sci1, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/29 16:20:19 5D9AD708 r   (reader) CanalDigital [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/29 16:20:19 5546D63B h    (webif) webif: decompressed 177583 bytes back into 437728 bytes
2018/10/29 16:20:19 5546D63B h    (webif) HTTP Server running. ip=0.0.0.0 port=83
2018/10/29 16:20:19 3DE0CC39 r   (reader) hd02 [smartreader] Reader initialized (device=SRv2;007:002, detect=cd, mhz= AUTO, cardmhz=369)
2018/10/29 16:20:19 00000000 s (emmcache) loaded 75094 emmcache records from /etc/tuxbox/config/oscam.emmcache in 578 ms
2018/10/29 16:20:19 00000000 s (emmcache) loaded 568 emmstat records from /etc/tuxbox/config/oscam.emmstat in 3 ms
2018/10/29 16:20:19 00000000 s (anticasc) anti cascading disabled
2018/10/29 16:20:19 59C3E080 c   (client) plain dvbapi-client granted (dvbapi_local, au=auto (3 reader))
2018/10/29 16:20:19 59C3E080 c   (dvbapi) dvbapi channelcache loaded from /etc/tuxbox/config/oscam.ccache
2018/10/29 16:20:19 59C3E080 c   (dvbapi) Detected /dev/dvb/adapter0/demux0 Api: 0, userconfig boxtype: 1 maximum amount of possible filters is 32 (oscam limit is 32)
2018/10/29 16:20:20 1044D2EE r   (reader) ORF-ICE [internal] card detected
2018/10/29 16:20:20 5D9AD708 r   (reader) CanalDigital [internal] card detected
2018/10/29 16:20:20 3DE0CC39 r   (reader) hd02 [smartreader] card detected
2018/10/29 16:20:20 1044D2EE r   (reader) ORF-ICE [internal] ATR: 3B 78 12 00 00 54 C4 03 00 8F F1 90 00
2018/10/29 16:20:20 1044D2EE r   (reader) ORF-ICE [internal] ORF ICE CW-Mode recognized
2018/10/29 16:20:21 5D9AD708 r   (reader) CanalDigital [internal] ATR: 3B 24 00 30 42 30 30
2018/10/29 16:20:21 5D9AD708 r   (reader) CanalDigital [internal] MTV UNLIMITED recognized
2018/10/29 16:20:24 3DE0CC39 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/29 16:20:24 3DE0CC39 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/29 16:20:24 3DE0CC39 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 512 D= 16 N=0 T=1 inv=1 parity=ODD
2018/10/29 16:20:25 1044D2EE r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 4857906
2018/10/29 16:20:25 5D9AD708 r   (reader) CanalDigital [internal] Buffers readed  0 bytes total time_us 4500021
2018/10/29 16:20:26 3DE0CC39 r   (reader) hd02 [smartreader] detect native nagra card
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [internal] type: Conax, caid: 0B00, serial: ##########, hex serial: ########, card: v64
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [internal] Providers: 1
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [internal] Provider: 1  Provider-Id: 000000
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [internal] Provider: 1  SharedAddress: ########
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [internal] found card system conax
2018/10/29 16:20:28 5D9AD708 r   (reader) CanalDigital [conax] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/29 16:20:29 1044D2EE r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 3314511
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 1, id: 6010, classes: 0130FF05, date: 2012/03/21 - 2012/04/08, name: Canal+
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 2, id: 6010, classes: 0130FF05, date: 1990/01/01 - 1990/01/01, name: Canal+
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 3, id: 6020, classes: 01FFFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 1
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 4, id: 6020, classes: 01FFFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 1
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 5, id: 6030, classes: 01000007, date: 2012/03/21 - 2012/04/08, name: Nordic 2
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 6, id: 6030, classes: 01000007, date: 1990/01/01 - 1990/01/01, name: Nordic 2
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 7, id: 6040, classes: 0107C388, date: 2012/05/01 - 2012/05/31, name: Nordic 3
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 8, id: 6040, classes: 0107C388, date: 2012/04/01 - 2012/04/30, name: Nordic 3
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 9, id: 6050, classes: 010004F2, date: 2012/03/21 - 2012/04/08, name: TSS
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 10, id: 6050, classes: 010004F2, date: 1990/01/01 - 1990/01/01, name: TSS
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 11, id: 6060, classes: 010FFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 4
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 12, id: 6060, classes: 010FFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 4
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 13, id: 6070, classes: 01400000, date: 2012/05/01 - 2012/05/31, name: Nordic 5
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 14, id: 6070, classes: 01FC71C0, date: 2012/03/21 - 2012/04/08, name: Nordic 5
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 15, id: 6080, classes: 01100100, date: 2012/05/01 - 2012/05/31, name: HD
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 16, id: 6080, classes: 01000100, date: 2012/04/01 - 2012/04/30, name: HD
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 17, id: 8010, classes: 01000020, date: 2018/10/01 - 2018/10/31, name: 8010
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 18, id: 8010, classes: 01000020, date: 2018/09/01 - 2018/09/30, name: 8010
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 19, id: 8013, classes: 01200000, date: 2014/09/01 - 2014/09/30, name: 8013
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 20, id: 8013, classes: 01200000, date: 2013/09/01 - 2013/09/30, name: 8013
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 21, id: 8014, classes: 01000EA9, date: 2014/12/01 - 2014/12/31, name: 8014
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 22, id: 8014, classes: 00000000, date: 1990/01/01 - 1990/01/01, name: 8014
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 23, id: 8012, classes: 01000000, date: 2016/04/01 - 2016/04/30, name: 8012
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] Package: 24, id: 8012, classes: 01000000, date: 2016/03/01 - 2016/03/31, name: 8012
2018/10/29 16:20:29 5D9AD708 r   (reader) CanalDigital [conax] ready for requests
2018/10/29 16:20:30 1044D2EE r   (reader) ORF-ICE [internal] card detected
2018/10/29 16:20:30 1044D2EE r   (reader) ORF-ICE [internal] type: CryptoWorks
2018/10/29 16:20:30 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:20:30 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/29 16:20:30 1044D2EE r   (reader) ORF-ICE [internal] type: CryptoWorks, caid: 0D98, ascii serial: #########, hex serial: ##########
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [internal] issuer: CryptoWorks, id: 04, bios: v3, pin: unknown, mfid: 3F00
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [internal] providers: 4 (04,08,0C,10)
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [internal] found card system cryptoworks
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] provider: 1, id: 04, name: Operator: FFFF
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: FFE0, date: 2018/10/27 - 2019/07/05, name: Product FFE0
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0001, date: 2018/10/28 - 2019/07/06, name: Product 0001
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0002, date: 2018/10/25 - 2019/07/03, name: Product 0002
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 7FFB, date: 2018/10/22 - 2018/11/21, name: Product 7FFB
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 7FF7, date: 2018/10/28 - 2018/11/07, name: Product 7FF7
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] provider: 2, id: 08, name: Operator: FFFF
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] provider: 3, id: 0C, name: Operator: FFFF
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] provider: 4, id: 10, name: Operator: FFFF
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/29 16:20:31 1044D2EE r   (reader) ORF-ICE [cryptoworks] ready for requests
2018/10/29 16:20:35 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:20:35 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/29 16:20:35 3DE0CC39 r   (reader) hd02 [smartreader] card system not supported
2018/10/29 16:20:35 3DE0CC39 r   (reader) hd02 [smartreader] Normal mode failed, reverting to Deprecated Mode
2018/10/29 16:20:39 3DE0CC39 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/29 16:20:39 3DE0CC39 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/29 16:20:39 3DE0CC39 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 372 D= 1 N=0 T=1 inv=1 parity=ODD
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 0 CAID: 1830 ECM_PID: 021D PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 1 CAID: 1843 ECM_PID: 021E PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 2 CAID: 1860 ECM_PID: 0221 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 3 CAID: 09C4 ECM_PID: 021F PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 4 CAID: 098C ECM_PID: 0220 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 5 CAID: 0500 ECM_PID: 0225 PROVID: 051900
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 6 CAID: 06CB ECM_PID: 0227 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 7 CAID: 186A ECM_PID: 0222 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 8 CAID: 186D ECM_PID: 0223 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 ecmpid 9 CAID: 098D ECM_PID: 0224 PROVID: 000000
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 found 10 ECMpids and 7 STREAMpids in caPMT
2018/10/29 16:20:44 59C3E080 c   (dvbapi) Demuxer 0 no suitable readers found that can be used for decoding!
2018/10/29 16:20:45 59C3E080 c   (dvbapi) Demuxer 0 found 10 ECMpids and 7 STREAMpids in PMT
2018/10/29 16:20:45 3DE0CC39 r   (reader) hd02 [smartreader] Warning: Card returned error on setting ifsd value to 160
2018/10/29 16:20:46 3DE0CC39 r   (reader) hd02 [smartreader] detect native nagra card
2018/10/29 16:20:48 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:20:51 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:20:55 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:20:57 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command error, trying to reactivate!
2018/10/29 16:21:00 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:21:02 3DE0CC39 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/29 16:21:02 3DE0CC39 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/29 16:21:02 3DE0CC39 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 512 D= 16 N=0 T=1 inv=1 parity=ODD
2018/10/29 16:21:05 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:21:07 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:21:07 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/29 16:21:10 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:21:12 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:21:12 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/29 16:21:15 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:21:17 3DE0CC39 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/29 16:21:17 3DE0CC39 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/29 16:21:17 3DE0CC39 r   (reader) hd02 [smartreader] card system not supported
2018/10/29 16:21:17 3DE0CC39 r   (reader) hd02 [smartreader] THIS WAS A FAILED START ATTEMPT No 1 out of max alloted of 1
2018/10/29 16:21:17 3DE0CC39 r   (reader) hd02 [smartreader] card initializing error
2018/10/29 16:21:20 59C3E080 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/29 16:22:30 59C3E080 c        (-) -- Skipped 13 duplicated log lines --
2018/10/29 16:23:30 59C3E080 c        (-) -- Skipped 12 duplicated log lines --



Heeft iemand een briljant idee, wat het probleem zou kunnen zijn, en hoe ik het kan oplossen.

Als ik de receiver opnieuw start, werkt de HD+ kaart wel. Maar waarschijnlijk is herstarten toch iets anders dan echt een aantal uur uitgeschakeld zijn.

Ik ga er nu vanuit dat ik in principe geen opnames meer kan maken, 's nachts, nadat de receiver weer uit is, omdat de HD+ kaart niet zal werken.





Alvast bedankt voor de suggesties!

- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites

  • Reacties 123
  • Aangemaakt
  • Laatste reactie

Beste reacties in dit topic

Populaire dagen

Beste reacties in dit topic

Populaire dagen

Geplaatste afbeeldingen

luisteraar Superster

luisteraar

Geplaatst:
Geplaatst: (aangepast)

Zo te zien in de log loopt de de com met usb reader niet goed en een

resync van reader lukt niet helemaal.

Je had al eens eerder problemen met die reader toen was het

vermoedelijk een thermisch probleem.

nu ook een warmte probleem?

probeer ook eens de reader in een ander usb poort te prikken of het

dan beter gaat ,je zal dan vermoedelijk in de reader de usb poort aanpassen.

Aan oscam ligt het in ieder geval niet.

Je kan nog een testje doen als de reader niet werkt doe dan eens

in oscam een usb scan en kijken of de reader er nog bij staat

aangepast door luisteraar
Link naar reactie
Delen op andere sites
Tonskidutch Superster

Tonskidutch

Geplaatst:
Geplaatst:

ik zie een regel met initialisatie die ik van een USB card reader niet verwacht,

maar dat het de verkeerde instelling zou kunnen zijn voor de usb cardreader kun je natuurlijk voor de HD+ kaart zelf eens testen door deze in de ingebouwde reader te steken en kijken wat ie bij reboot doet

Simply Wonderfull (new)

Kid Creole And The Coconuts



Link naar reactie
Delen op andere sites
Mimisiku Superster

Mimisiku

Geplaatst:
Geplaatst:

USB spanning gaat uit in Deep-sleep... Gewoon de ontvanger in standby mode zetten of een USB hub met voeding gebruiken.. Ook de clocksnelheid op 3.57Mhz laten staan voor HD+...

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Link naar reactie
Delen op andere sites
luisteraar Superster

luisteraar

Geplaatst:
Geplaatst:
16 minuten geleden zei Mimisiku:

USB spanning gaat uit in Deep-sleep... Gewoon de ontvanger in standby mode zetten of een USB hub met voeding gebruiken.. Ook de clocksnelheid op 3.57Mhz laten staan voor HD+...

Ik heb nog nooit een probleem gehad dat bij opstarten na deep sleep de usb reader

niet goed geinstalleerd wordt

Link naar reactie
Delen op andere sites
Mimisiku Superster

Mimisiku

Geplaatst:
Geplaatst:

Ik wel..... De TripleReader van Argolis start ook niet correct op uit deep-sleep. De clockspeed gaat niet goed...

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Link naar reactie
Delen op andere sites
luisteraar Superster

luisteraar

Geplaatst:
Geplaatst:

@Sverige het komt net bij mij op dat bij een deepsleep de ontvanger toch niet helemaal uit is en

de interne usb hub chip onder spanning blijft.

Probeer een het volgende

ontvanger in deepsleep zetten

stekker van ontvanger 30 seconden uit wand contact doos.

Stekker nieuw er in waarna ontvanger echt koud boot.

Evt is usb probleem daarna opgelost

Link naar reactie
Delen op andere sites
Sverige Superster

Sverige

Geplaatst:
  • Auteur
Geplaatst:

Vanochtend heb ik hem met de schakelaar achterop de receiver uitgezet... een poos gewacht, aangezet...  en geen succes.

Nu hem weer aangezet om eens te kijken... niets dus



ik plaats de log nog even...



2018/10/30 13:51:46 00000000 s     (main) Host name      = vuultimo4k
2018/10/30 13:51:46 00000000 s     (main) Release        = 3.14.28-1.12
2018/10/30 13:51:46 00000000 s     (main) Version        = #1 SMP Fri Apr 6 08:48:21 CEST 2018
2018/10/30 13:51:46 00000000 s     (main) Machine        = armv7l
2018/10/30 13:51:46 00000000 s     (main) Stb model      = dm8000
2018/10/30 13:51:46 00000000 s     (main) Stb vumodel    = vuultimo4k
2018/10/30 13:51:46 00000000 s     (main) Stb boxtype    = vuultimo4k
2018/10/30 13:51:46 00000000 s     (main) creating pidfile /tmp/oscam.pid with pid 1030
2018/10/30 13:51:47 00000000 s   (config) userdb reloaded: 1 accounts loaded, 0 expired, 0 disabled
2018/10/30 13:51:47 00000000 s     (main) signal handling initialized
2018/10/30 13:51:47 00000000 s   (config) 15 provid's loaded
2018/10/30 13:51:47 00000000 s   (config) 256 service-id's loaded in 2 ms
2018/10/30 13:51:47 00000000 s   (reader) ORF-ICE [internal] creating thread for device /dev/sci0
2018/10/30 13:51:47 00000000 s   (reader) CanalDigital [internal] creating thread for device /dev/sci1
2018/10/30 13:51:47 00000000 s   (reader) hd02 [smartreader] creating thread for device SRv2;007:002
2018/10/30 13:51:47 00000000 s     (stat) loadbalancer: could not open /tmp/.oscam/stat for reading (errno=2 No such file or directory)
2018/10/30 13:51:47 70FA348E r   (reader) CanalDigital [internal] Reader initialized (device=/dev/sci1, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/30 13:51:47 70FA348E r   (reader) CanalDigital [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/30 13:51:47 2EF33BDA r   (reader) ORF-ICE [internal] Reader initialized (device=/dev/sci0, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/30 13:51:47 2EF33BDA r   (reader) ORF-ICE [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/30 13:51:47 22F4AD46 h    (webif) webif: decompressed 177583 bytes back into 437728 bytes
2018/10/30 13:51:47 22F4AD46 h    (webif) HTTP Server running. ip=0.0.0.0 port=83
2018/10/30 13:51:47 3FB72157 r   (reader) hd02 [smartreader] Reader initialized (device=SRv2;007:002, detect=cd, mhz= AUTO, cardmhz=369)
2018/10/30 13:51:47 00000000 s (emmcache) loaded 28922 emmcache records from /etc/tuxbox/config/oscam.emmcache in 243 ms
2018/10/30 13:51:47 00000000 s (emmcache) loaded 8 emmstat records from /etc/tuxbox/config/oscam.emmstat in 1 ms
2018/10/30 13:51:47 00000000 s (anticasc) anti cascading disabled
2018/10/30 13:51:47 11A03463 c   (client) plain dvbapi-client granted (dvbapi_local, au=auto (3 reader))
2018/10/30 13:51:47 11A03463 c   (dvbapi) dvbapi channelcache loaded from /etc/tuxbox/config/oscam.ccache
2018/10/30 13:51:47 11A03463 c   (dvbapi) Detected /dev/dvb/adapter0/demux0 Api: 0, userconfig boxtype: 1 maximum amount of possible filters is 32 (oscam limit is 32)
2018/10/30 13:51:48 2EF33BDA r   (reader) ORF-ICE [internal] card detected
2018/10/30 13:51:48 3FB72157 r   (reader) hd02 [smartreader] card detected
2018/10/30 13:51:48 70FA348E r   (reader) CanalDigital [internal] card detected
2018/10/30 13:51:48 2EF33BDA r   (reader) ORF-ICE [internal] ATR: 3B 78 12 00 00 54 C4 03 00 8F F1 90 00
2018/10/30 13:51:48 2EF33BDA r   (reader) ORF-ICE [internal] ORF ICE CW-Mode recognized
2018/10/30 13:51:48 70FA348E r   (reader) CanalDigital [internal] ATR: 3B 24 00 30 42 30 30
2018/10/30 13:51:48 70FA348E r   (reader) CanalDigital [internal] MTV UNLIMITED recognized
2018/10/30 13:51:52 3FB72157 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/30 13:51:52 3FB72157 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/30 13:51:52 3FB72157 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 512 D= 16 N=0 T=1 inv=1 parity=ODD
2018/10/30 13:51:53 2EF33BDA r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 4856732
2018/10/30 13:51:53 70FA348E r   (reader) CanalDigital [internal] Buffers readed  0 bytes total time_us 4800000
2018/10/30 13:51:54 3FB72157 r   (reader) hd02 [smartreader] detect native nagra card
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [internal] type: Conax, caid: 0B00, serial: ##########, hex serial: ########, card: v64
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [internal] Providers: 1
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [internal] Provider: 1  Provider-Id: 000000
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [internal] Provider: 1  SharedAddress: ########
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [internal] found card system conax
2018/10/30 13:51:56 70FA348E r   (reader) CanalDigital [conax] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/30 13:51:57 2EF33BDA r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 3314550
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 1, id: 6010, classes: 0130FF05, date: 2012/03/21 - 2012/04/08, name: Canal+
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 2, id: 6010, classes: 0130FF05, date: 1990/01/01 - 1990/01/01, name: Canal+
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 3, id: 6020, classes: 01FFFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 1
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 4, id: 6020, classes: 01FFFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 1
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 5, id: 6030, classes: 01000007, date: 2012/03/21 - 2012/04/08, name: Nordic 2
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 6, id: 6030, classes: 01000007, date: 1990/01/01 - 1990/01/01, name: Nordic 2
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 7, id: 6040, classes: 0107C388, date: 2012/05/01 - 2012/05/31, name: Nordic 3
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 8, id: 6040, classes: 0107C388, date: 2012/04/01 - 2012/04/30, name: Nordic 3
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 9, id: 6050, classes: 010004F2, date: 2012/03/21 - 2012/04/08, name: TSS
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 10, id: 6050, classes: 010004F2, date: 1990/01/01 - 1990/01/01, name: TSS
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 11, id: 6060, classes: 010FFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 4
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 12, id: 6060, classes: 010FFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 4
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 13, id: 6070, classes: 01400000, date: 2012/05/01 - 2012/05/31, name: Nordic 5
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 14, id: 6070, classes: 01FC71C0, date: 2012/03/21 - 2012/04/08, name: Nordic 5
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 15, id: 6080, classes: 01100100, date: 2012/05/01 - 2012/05/31, name: HD
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 16, id: 6080, classes: 01000100, date: 2012/04/01 - 2012/04/30, name: HD
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 17, id: 8010, classes: 01000020, date: 2018/10/01 - 2018/10/31, name: 8010
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 18, id: 8010, classes: 01000020, date: 2018/09/01 - 2018/09/30, name: 8010
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 19, id: 8013, classes: 01200000, date: 2014/09/01 - 2014/09/30, name: 8013
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 20, id: 8013, classes: 01200000, date: 2013/09/01 - 2013/09/30, name: 8013
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 21, id: 8014, classes: 01000EA9, date: 2014/12/01 - 2014/12/31, name: 8014
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 22, id: 8014, classes: 00000000, date: 1990/01/01 - 1990/01/01, name: 8014
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 23, id: 8012, classes: 01000000, date: 2016/04/01 - 2016/04/30, name: 8012
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] Package: 24, id: 8012, classes: 01000000, date: 2016/03/01 - 2016/03/31, name: 8012
2018/10/30 13:51:57 70FA348E r   (reader) CanalDigital [conax] ready for requests
2018/10/30 13:51:58 3FB72157 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 13:51:58 2EF33BDA r   (reader) ORF-ICE [internal] card detected
2018/10/30 13:51:58 2EF33BDA r   (reader) ORF-ICE [internal] type: CryptoWorks
2018/10/30 13:51:58 3FB72157 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/30 13:51:58 2EF33BDA r   (reader) ORF-ICE [internal] type: CryptoWorks, caid: 0D98, ascii serial: #########, hex serial: ##########
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [internal] issuer: CryptoWorks, id: 04, bios: v3, pin: unknown, mfid: 3F00
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [internal] providers: 4 (04,08,0C,10)
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [internal] found card system cryptoworks
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] provider: 1, id: 04, name: Operator: FFFF
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: FFE0, date: 2018/10/28 - 2019/07/06, name: Product FFE0
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0001, date: 2018/10/29 - 2019/07/07, name: Product 0001
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0002, date: 2018/10/28 - 2019/07/06, name: Product 0002
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 7FFB, date: 2018/10/22 - 2018/11/21, name: Product 7FFB
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 7FF7, date: 2018/10/29 - 2018/11/08, name: Product 7FF7
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] provider: 2, id: 08, name: Operator: FFFF
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] provider: 3, id: 0C, name: Operator: FFFF
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] provider: 4, id: 10, name: Operator: FFFF
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 13:51:59 2EF33BDA r   (reader) ORF-ICE [cryptoworks] ready for requests
2018/10/30 13:52:03 3FB72157 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 13:52:03 3FB72157 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/30 13:52:03 3FB72157 r   (reader) hd02 [smartreader] card system not supported
2018/10/30 13:52:03 3FB72157 r   (reader) hd02 [smartreader] Normal mode failed, reverting to Deprecated Mode
2018/10/30 13:52:07 3FB72157 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/30 13:52:07 3FB72157 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/30 13:52:07 3FB72157 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 372 D= 1 N=0 T=1 inv=1 parity=ODD
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 0 CAID: 1830 ECM_PID: 1CEC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 1 CAID: 1843 ECM_PID: 19EC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 2 CAID: 09C4 ECM_PID: 1BEC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 3 CAID: 098C ECM_PID: 1AEC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 4 CAID: 1860 ECM_PID: 1EEC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 5 CAID: 186A ECM_PID: 1DEC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 6 CAID: 098D ECM_PID: 18EC PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 7 CAID: 186D ECM_PID: 1DED PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 8 CAID: 0500 ECM_PID: 1FEC PROVID: 051900
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 ecmpid 9 CAID: 06CB ECM_PID: 1BED PROVID: 000000
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 found 10 ECMpids and 4 STREAMpids in caPMT
2018/10/30 13:52:11 11A03463 c   (dvbapi) Demuxer 0 no suitable readers found that can be used for decoding!
2018/10/30 13:52:12 11A03463 c   (dvbapi) Demuxer 0 found 10 ECMpids and 4 STREAMpids in PMT
2018/10/30 13:52:13 3FB72157 r   (reader) hd02 [smartreader] Warning: Card returned error on setting ifsd value to 160
2018/10/30 13:52:14 3FB72157 r   (reader) hd02 [smartreader] detect native nagra card
2018/10/30 13:52:15 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 13:52:19 3FB72157 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 13:52:20 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 13:52:23 3FB72157 r   (reader) hd02 [smartreader] T1 Resync command error, trying to reactivate!
2018/10/30 13:52:25 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 13:52:28 3FB72157 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/30 13:52:28 3FB72157 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/30 13:52:28 3FB72157 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 512 D= 16 N=0 T=1 inv=1 parity=ODD
2018/10/30 13:52:30 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 13:52:33 3FB72157 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 13:52:33 3FB72157 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/30 13:52:35 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 13:52:38 3FB72157 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 13:52:38 3FB72157 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/30 13:52:38 3FB72157 r   (reader) hd02 [smartreader] card system not supported
2018/10/30 13:52:38 3FB72157 r   (reader) hd02 [smartreader] THIS WAS A FAILED START ATTEMPT No 1 out of max alloted of 1
2018/10/30 13:52:38 3FB72157 r   (reader) hd02 [smartreader] card initializing error
2018/10/30 13:52:40 11A03463 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!



De smartreader start gewoon niet...



Dan via het VTI camcenter, even de cam gestart...

En na 20 seconden komt er beeld...



2018/10/30 13:53:50 11A03463 c        (-) -- Skipped 13 duplicated log lines --
2018/10/30 13:54:50 11A03463 c        (-) -- Skipped 12 duplicated log lines --
2018/10/30 13:55:50 11A03463 c        (-) -- Skipped 12 duplicated log lines --
2018/10/30 13:56:55 79C6425A r   (reader) hd02 [nagra] |8011|0066    |2014/11/04  |2015/11/05  |
2018/10/30 13:56:56 79C6425A r   (reader) hd02 [nagra] |8011|0067    |2010/01/19  |2010/01/20  |
2018/10/30 13:56:56 79C6425A r   (reader) hd02 [nagra] |8011|0BEA    |2018/07/31  |2019/08/01  |
2018/10/30 13:56:56 79C6425A r   (reader) hd02 [nagra] -----------------------------------------
2018/10/30 13:56:56 6C4C7792 c   (dvbapi) Demuxer 0 restarting decodingrequests after 27838 ms with 1 enabled and 9 disabled ecmpids!
2018/10/30 13:56:56 6C4C7792 c   (dvbapi) Demuxer 0 trying to descramble PID 1 CAID 1843 PROVID 000000 ECMPID 19EC ANY CHID PMTPID 0061 VPID 01FF
2018/10/30 13:56:57 6C4C7792 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:0BEA7F6635C1E83A9490EE4E82A50D9B): found (533 ms) by hd02 - ProSieben HD
2018/10/30 13:57:03 79C6425A r   (reader) hd02 [nagra] dvbapi_local emmtype=global, len=139 (hex: 0x8B), cnt=1: written (691 ms)
2018/10/30 13:57:07 6C4C7792 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:0E69DA38EDA4649E5A439CFDBFB3CA02): found (516 ms) by hd02 - ProSieben HD
2018/10/30 13:57:08 79C6425A r   (reader) hd02 [nagra] dvbapi_local emmtype=global, len=139 (hex: 0x8B), cnt=1: written (643 ms)
2018/10/30 13:57:22 6C4C7792 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:748EBA21215CBC53EABABBA7B03F2B56): found (509 ms) by hd02 - ProSieben HD
2018/10/30 13:57:37 6C4C7792 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:2A138E638E2A3871ABECEF22F204DBA8): found (519 ms) by hd02 - ProSieben HD



Als ik de receiver uitzet, en na 1  minuut weer aanzet, werkt alles gewoon wel... het is pas na een poosje dat de boel niet meer werkt.



Maar ik zal hem nog een keer uitzetten (deep sleep), dan de schakelaar uit, en de stekker eruit....  maar ik vermoed dat dat geen invloed heeft? schakelaar achterop is hetzelfde als stekker eruit? of toch niet?



- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites
Sverige Superster

Sverige

Geplaatst:
  • Auteur
Geplaatst:
1 uur geleden zei Mimisiku:

De clockspeed gaat niet goed..

Ok, de clockspeed... ik heb er zelf de afgelopen 2 maanden niets aan gewijzigd... maar goed, ik probeer te vinden waar ik dat aanpas...



In de oscam server staat geen clockspeed voor HD+ aangegeven.

Moet ik die lijn ergens tussen zetten, en zo ja, wat precies?




- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites
Sverige Superster

Sverige

Geplaatst:
  • Auteur
Geplaatst: (aangepast)

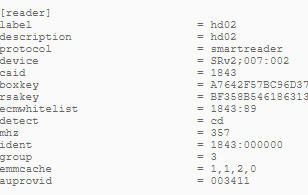

ik heb mhz                           = 357

er ingezet... de receiver nu uitgezet, ik zal de schakelaar uitzetten achterop, en ook de stekker eruit.... even wachten, en kijken of dat voldoende is om te kijken of hij het dan doet.



ik vind het vreemd dat het ruim 2 maanden gewerkt heeft, en nu niet meer...



aangepast door Sverige

- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites
Mimisiku Superster

Mimisiku

Geplaatst:
Geplaatst:
8 minuten geleden zei luisteraar:

Clockspeed is een onzin parameter wordt niet gebruikt.



Je luistert klaarblijkelijk beter dan je leest. Er staat gewoon clockspeed is na opstarten niet goed. Er staat nergens dat het een OScam parameter is.... Gewoon een feit dat de 'klokfrequentie' na een deep-sleep niet correct is. Niet meer, niet minder,.

Raspberry Pi 3B+ Argolis Triple Reader Kaartserver + Smargo

Vu+ Zero 4K DVB-S2X, Vu+ Zero 4K DVB-C/T2, DM525 Combo, DM920 UHD

VU+Ultimo4K BTE,  DM-Three UHD, Ziggo, HD+, TV-Vlaanderen, ORF, TiVuSAT, Fransat, SRG

5°W, 0.8°W, 4.8°E, 9°E, 13°E,19.2°E, 23.5°E, 28.2°E. Triax 88 en Wavefrontier



Link naar reactie
Delen op andere sites
Sverige Superster

Sverige

Geplaatst:
  • Auteur
Geplaatst: (aangepast)

Nu is hij er doorheen gelopen, en start hij de smargo op...

Maar, het kan zijn dat er te weinig tijd tussen zit... of kan dat niet als de stroom eraf geweest is?



hier de logfile:



1970/01/01 01:00:10 00000000 s     (main) Host name      = vuultimo4k
1970/01/01 01:00:10 00000000 s     (main) Release        = 3.14.28-1.12
1970/01/01 01:00:10 00000000 s     (main) Version        = #1 SMP Fri Apr 6 08:48:21 CEST 2018
1970/01/01 01:00:10 00000000 s     (main) Machine        = armv7l
1970/01/01 01:00:10 00000000 s     (main) Stb model      = dm8000
1970/01/01 01:00:10 00000000 s     (main) Stb vumodel    = vuultimo4k
1970/01/01 01:00:10 00000000 s     (main) Stb boxtype    = vuultimo4k
1970/01/01 01:00:10 00000000 s     (main) The current system time is smaller than the build date (Aug 23 2018). Waiting up to 60 seconds for time to correct
2018/10/30 14:19:58 00000000 s     (main) creating pidfile /tmp/oscam.pid with pid 1016
2018/10/30 14:19:58 00000000 s   (config) userdb reloaded: 1 accounts loaded, 0 expired, 0 disabled
2018/10/30 14:19:58 00000000 s     (main) signal handling initialized
2018/10/30 14:19:58 00000000 s   (config) 15 provid's loaded
2018/10/30 14:19:58 00000000 s   (config) 256 service-id's loaded in 2 ms
2018/10/30 14:19:58 00000000 s   (reader) ORF-ICE [internal] creating thread for device /dev/sci0
2018/10/30 14:19:58 00000000 s   (reader) CanalDigital [internal] creating thread for device /dev/sci1
2018/10/30 14:19:58 00000000 s   (reader) hd02 [smartreader] creating thread for device SRv2;007:002
2018/10/30 14:19:58 3BF9A657 r   (reader) ORF-ICE [internal] Reader initialized (device=/dev/sci0, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/30 14:19:58 3BF9A657 r   (reader) ORF-ICE [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/30 14:19:58 00000000 s     (stat) loadbalancer: could not open /tmp/.oscam/stat for reading (errno=2 No such file or directory)
2018/10/30 14:19:58 26C3448A r   (reader) CanalDigital [internal] Reader initialized (device=/dev/sci1, detect=cd, pll max=27.00 MHz, wanted mhz=4.50 MHz)
2018/10/30 14:19:58 26C3448A r   (reader) CanalDigital [internal] Reader sci internal, detected box type: vuultimo4k
2018/10/30 14:19:58 27384611 h    (webif) webif: decompressed 177583 bytes back into 437728 bytes
2018/10/30 14:19:58 27384611 h    (webif) HTTP Server running. ip=0.0.0.0 port=83
2018/10/30 14:19:58 2724F083 r   (reader) hd02 [smartreader] Reader initialized (device=SRv2;007:002, detect=cd, mhz= AUTO, cardmhz=369)
2018/10/30 14:19:58 00000000 s (emmcache) loaded 28922 emmcache records from /etc/tuxbox/config/oscam.emmcache in 269 ms
2018/10/30 14:19:58 00000000 s (emmcache) loaded 8 emmstat records from /etc/tuxbox/config/oscam.emmstat in 1 ms
2018/10/30 14:19:58 00000000 s (anticasc) anti cascading disabled
2018/10/30 14:19:58 6870DB64 c   (client) plain dvbapi-client granted (dvbapi_local, au=auto (3 reader))
2018/10/30 14:19:58 6870DB64 c   (dvbapi) dvbapi channelcache loaded from /etc/tuxbox/config/oscam.ccache
2018/10/30 14:19:58 6870DB64 c   (dvbapi) Detected /dev/dvb/adapter0/demux0 Api: 0, userconfig boxtype: 1 maximum amount of possible filters is 32 (oscam limit is 32)
2018/10/30 14:19:59 3BF9A657 r   (reader) ORF-ICE [internal] card detected
2018/10/30 14:19:59 2724F083 r   (reader) hd02 [smartreader] card detected
2018/10/30 14:19:59 26C3448A r   (reader) CanalDigital [internal] card detected
2018/10/30 14:20:00 3BF9A657 r   (reader) ORF-ICE [internal] ATR: 3B 78 12 00 00 54 C4 03 00 8F F1 90 00
2018/10/30 14:20:00 3BF9A657 r   (reader) ORF-ICE [internal] ORF ICE CW-Mode recognized
2018/10/30 14:20:00 26C3448A r   (reader) CanalDigital [internal] ATR: 3B 24 00 30 42 30 30
2018/10/30 14:20:00 26C3448A r   (reader) CanalDigital [internal] MTV UNLIMITED recognized
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 0 CAID: 1830 ECM_PID: 1CEC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 1 CAID: 1843 ECM_PID: 19EC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 2 CAID: 09C4 ECM_PID: 1BEC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 3 CAID: 098C ECM_PID: 1AEC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 4 CAID: 1860 ECM_PID: 1EEC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 5 CAID: 186A ECM_PID: 1DEC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 6 CAID: 098D ECM_PID: 18EC PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 7 CAID: 186D ECM_PID: 1DED PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 8 CAID: 0500 ECM_PID: 1FEC PROVID: 051900
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 ecmpid 9 CAID: 06CB ECM_PID: 1BED PROVID: 000000
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 found 10 ECMpids and 4 STREAMpids in caPMT
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 no suitable readers found that can be used for decoding!
2018/10/30 14:20:02 6870DB64 c   (dvbapi) Demuxer 0 found 10 ECMpids and 4 STREAMpids in PMT
2018/10/30 14:20:03 2724F083 r   (reader) hd02 [smartreader] ATR: 3F FF 95 00 FF 91 81 71 A0 47 00 44 4E 41 53 50 31 38 30 20 4D 65 72 30 30 30 28
2018/10/30 14:20:03 2724F083 r   (reader) hd02 [smartreader] HD-Plus 02 recognized
2018/10/30 14:20:03 2724F083 r   (reader) hd02 [smartreader] Effective reader settings mhz =534 F= 512 D= 16 N=0 T=1 inv=1 parity=ODD
2018/10/30 14:20:04 3BF9A657 r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 4857692
2018/10/30 14:20:05 26C3448A r   (reader) CanalDigital [internal] Buffers readed  0 bytes total time_us 4799910
2018/10/30 14:20:05 2724F083 r   (reader) hd02 [smartreader] detect native nagra card
2018/10/30 14:20:06 6870DB64 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [internal] type: Conax, caid: 0B00, serial: ##########, hex serial: ########, card: v64
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [internal] Providers: 1
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [internal] Provider: 1  Provider-Id: 000000
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [internal] Provider: 1  SharedAddress: ########
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [internal] found card system conax
2018/10/30 14:20:07 26C3448A r   (reader) CanalDigital [conax] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/30 14:20:08 3BF9A657 r   (reader) ORF-ICE [internal] Buffers readed  0 bytes total time_us 3314467
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 1, id: 6010, classes: 0130FF05, date: 2012/03/21 - 2012/04/08, name: Canal+
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 2, id: 6010, classes: 0130FF05, date: 1990/01/01 - 1990/01/01, name: Canal+
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 3, id: 6020, classes: 01FFFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 1
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 4, id: 6020, classes: 01FFFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 1
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 5, id: 6030, classes: 01000007, date: 2012/03/21 - 2012/04/08, name: Nordic 2
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 6, id: 6030, classes: 01000007, date: 1990/01/01 - 1990/01/01, name: Nordic 2
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 7, id: 6040, classes: 0107C388, date: 2012/05/01 - 2012/05/31, name: Nordic 3
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 8, id: 6040, classes: 0107C388, date: 2012/04/01 - 2012/04/30, name: Nordic 3
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 9, id: 6050, classes: 010004F2, date: 2012/03/21 - 2012/04/08, name: TSS
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 10, id: 6050, classes: 010004F2, date: 1990/01/01 - 1990/01/01, name: TSS
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 11, id: 6060, classes: 010FFFFF, date: 2012/03/21 - 2012/04/08, name: Nordic 4
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 12, id: 6060, classes: 010FFFFF, date: 1990/01/01 - 1990/01/01, name: Nordic 4
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 13, id: 6070, classes: 01400000, date: 2012/05/01 - 2012/05/31, name: Nordic 5
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 14, id: 6070, classes: 01FC71C0, date: 2012/03/21 - 2012/04/08, name: Nordic 5
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 15, id: 6080, classes: 01100100, date: 2012/05/01 - 2012/05/31, name: HD
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 16, id: 6080, classes: 01000100, date: 2012/04/01 - 2012/04/30, name: HD
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 17, id: 8010, classes: 01000020, date: 2018/10/01 - 2018/10/31, name: 8010
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 18, id: 8010, classes: 01000020, date: 2018/09/01 - 2018/09/30, name: 8010
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 19, id: 8013, classes: 01200000, date: 2014/09/01 - 2014/09/30, name: 8013
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 20, id: 8013, classes: 01200000, date: 2013/09/01 - 2013/09/30, name: 8013
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 21, id: 8014, classes: 01000EA9, date: 2014/12/01 - 2014/12/31, name: 8014
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 22, id: 8014, classes: 00000000, date: 1990/01/01 - 1990/01/01, name: 8014
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 23, id: 8012, classes: 01000000, date: 2016/04/01 - 2016/04/30, name: 8012
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] Package: 24, id: 8012, classes: 01000000, date: 2016/03/01 - 2016/03/31, name: 8012
2018/10/30 14:20:08 26C3448A r   (reader) CanalDigital [conax] ready for requests
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] card detected
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] type: CryptoWorks
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] type: CryptoWorks, caid: 0D98, ascii serial: #########, hex serial: ##########
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] issuer: CryptoWorks, id: 04, bios: v3, pin: unknown, mfid: 3F00
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] providers: 4 (04,08,0C,10)
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [internal] found card system cryptoworks
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] provider: 1, id: 04, name: Operator: FFFF
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: FFE0, date: 2018/10/28 - 2019/07/06, name: Product FFE0
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0001, date: 2018/10/29 - 2019/07/07, name: Product 0001
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0002, date: 2018/10/28 - 2019/07/06, name: Product 0002
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 7FFB, date: 2018/10/22 - 2018/11/21, name: Product 7FFB
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 7FF7, date: 2018/10/29 - 2018/11/08, name: Product 7FF7
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] provider: 2, id: 08, name: Operator: FFFF
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 14:20:10 6870DB64 c   (dvbapi) Demuxer 0 no enabled matching ecmpids -> decoding is waiting for matching readers!
2018/10/30 14:20:10 3BF9A657 r   (reader) ORF-ICE [cryptoworks] provider: 3, id: 0C, name: Operator: FFFF
2018/10/30 14:20:11 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 14:20:11 3BF9A657 r   (reader) ORF-ICE [cryptoworks] provider: 4, id: 10, name: Operator: FFFF
2018/10/30 14:20:11 3BF9A657 r   (reader) ORF-ICE [cryptoworks] chid: 0000, date: 1999/12/31 - 2000/01/07, name: DownLoad00000000
2018/10/30 14:20:11 3BF9A657 r   (reader) ORF-ICE [cryptoworks] ready for requests
2018/10/30 14:20:12 2724F083 r   (reader) hd02 [smartreader] Resync error: readtimeouts 0/0 (max/min) us, writetimeouts 0/0 (max/min) us
2018/10/30 14:20:12 2724F083 r   (reader) hd02 [smartreader] T1 Resync command succesfull ifsc = 160
2018/10/30 14:20:13 2724F083 r   (reader) hd02 [smartreader] ready for requests
2018/10/30 14:20:13 2724F083 r   (reader) hd02 [smartreader] found card system nagra
2018/10/30 14:20:13 2724F083 r   (reader) hd02 [nagra] THIS WAS A SUCCESSFUL START ATTEMPT No  1 out of max alloted of 1
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] ROM:    D N A S P 1 8 0
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] REV:    M e r 0 0 0
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] SER:    ############
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] CAID:   1843
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] Prv.ID: 00 00 34 11 (sysid)
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] Prv.ID: 00 00 00 00
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] IRD ID: ############
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] active to: 2018/12/31 01:30
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] -----------------------------------------
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] |id  |tier    |valid from  |valid to    |
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] +----+--------+------------+------------+
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] |8011|0066    |2014/11/04  |2015/11/05  |
2018/10/30 14:20:14 2724F083 r   (reader) hd02 [nagra] |8011|0067    |2010/01/19  |2010/01/20  |
2018/10/30 14:20:15 2724F083 r   (reader) hd02 [nagra] |8011|0BEA    |2018/07/31  |2019/08/01  |
2018/10/30 14:20:15 2724F083 r   (reader) hd02 [nagra] -----------------------------------------
2018/10/30 14:20:15 6870DB64 c   (dvbapi) Demuxer 0 restarting decodingrequests after 13139 ms with 1 enabled and 9 disabled ecmpids!
2018/10/30 14:20:15 6870DB64 c   (dvbapi) Demuxer 0 trying to descramble PID 1 CAID 1843 PROVID 000000 ECMPID 19EC ANY CHID PMTPID 0061 VPID 01FF
2018/10/30 14:20:16 6870DB64 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:3DCDE259AE7E841660043409076E8B9C): found (530 ms) by hd02 - ProSieben HD
2018/10/30 14:20:23 6870DB64 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:E5467633F0B25625AF35963CEF89FA26): found (511 ms) by hd02 - ProSieben HD
2018/10/30 14:20:38 6870DB64 c      (ecm) dvbapi_local (1843@000000/0000/EF75/89:76D429BBF63981ABBEFC459029BB2ABF): found (509 ms) by hd02 - ProSieben HD



Ik zal de box nu maar uitzetten... in deep sleep,. en een paar uur wachten en dan weer opstarten.

Dan weet ik of de clockspeed het probleem was of niet.....  als ik eerlijk ben, gekoof ik het nog niet, want ik had hem gisteren ook al eens uitgezet en weer aan...

Al gebied de eerlijkheid, dat hij vanochtend na het uitschakelen met de schakelaar, niet startte...



jullie horen het nog.....



@Mimisiku wat heb jij dan gedaan om je tripple reader goed te laten starten?  of heb je dat peobleem ook niet kunnen oplossen?



zo staat de oscam server nu, met de clockspeed erin...




ik hoop dat dat het probleem was... anders eventueel een usb hub met voeding zoals geschreven is...   maar daar vraag ik dan nog wel wat informatie over als dat nodig blijkt.





aangepast door Sverige

- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites
luisteraar Superster

luisteraar

Geplaatst:
Geplaatst:

Het is een communicatie via usb daar werkt snelheid parameters niet die staan vast en worden

bepaald via de handshake tussen box en kaartlezer.

Zo werken die instellingen ook niet op de vti images voor de interne kaartlezers die

zijn vast ingesteld in de kernel.

Probleem kan zijn dat kaartlezer niet goed gevoed wordt via usb.

Dit kan komen door geen goede verbinding met usb verbinding met box.

Daarom had ik al aangegeven sluit de reader op een andere usb poort

Link naar reactie
Delen op andere sites
Sverige Superster

Sverige

Geplaatst:
  • Auteur
Geplaatst:

luisteraar, ik heb hem nu uitgezet, en over een paar uur zet ik hem weer aan.

Lukt het weer niet, gebruik ik de usb poort eronder.

Misschien is er iets niet goed met het verleng kabeltje... dat zou ook kunnen. Ik zal eventueel eens een ander verlengkabeltje bestellen...

Maar, als de reader altijd werkt nadat je de cam start, via het camcenter... waarom zou hij dan plots wel goed gevoed worden? dat wil er bij mij niet echt in...maar goed, alles kan.

Ik blijf er nu af, zoals gezegd... werkt het nog niet, dan gebruik ik de andere usb poort, ik ga er vanuit dat ik dan in de oscam server hetvolgende moet aanpassen :

SRv2:007:001  ?? omdat de bovenste usb dan waarschijnlijk die 002 is, en de onderste 001 zou kunnen zijn?



ik kom later terug, als ik de box weer gestart heb om even over 5

- VU+ Ultimo 4K met 1x DVB-S2 FBC Twin + 1x DVB-C/T2 Dual tuner met VTI icm 2x een CityCom 2000 CCA850 voor Thor 1W en Astra 19.2Ost




Missachtet wird, was es umsonst gibt  (Else Pannek)

Link naar reactie
Delen op andere sites

Maak een account aan of log in om te reageren

Je moet een lid zijn om een reactie te kunnen achterlaten

Account aanmaken

Registreer voor een nieuwe account in onze community. Het is erg gemakkelijk!

Registreer een nieuwe account

Inloggen

Heb je reeds een account? Log hier in.

Nu inloggen
 Delen
Ga naar topic overzicht
×
×
  • Nieuwe aanmaken...
